Dual high-power operational amplifier featuring a 1.6MHz bandwidth and 7A output current per channel. This BIFET technology amplifier offers a 96dB voltage gain and 8V/µs slew rate. Designed for through-hole mounting in a TO-3 package, it operates with dual supply voltages from ±10V to ±35V, with a maximum dual supply of ±35V. The amplifier boasts a 95dB common mode rejection ratio and a low input bias current of 50pA. Operating temperature range is -40°C to 125°C.
PackageTO-3
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments OPA2541AM technical specifications.
General
Amplifier Type
POWER
Bandwidth
1.6MHz
Package/Case
TO-3
Common Mode Rejection Ratio
95dB
Dual Supply Voltage
28V
Gain Bandwidth Product
1.6MHz
Height
7.11mm
Input Bias Current
50pA
Input Offset Voltage (Vos)
10mV
Lead Free
Contains Lead
Length
38.86mm
Max Dual Supply Voltage
35V
Min Dual Supply Voltage
10V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
40mA
Operating Supply Voltage
35V
Output Current per Channel
7A
Package Quantity
18
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
8V/µs
Technology
BIFET
Unity Gain Bandwidth Product
1.6MHz
Voltage Gain
96dB
Width
25.4mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA2541AM Datasheet
Download the complete datasheet for Texas Instruments OPA2541AM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

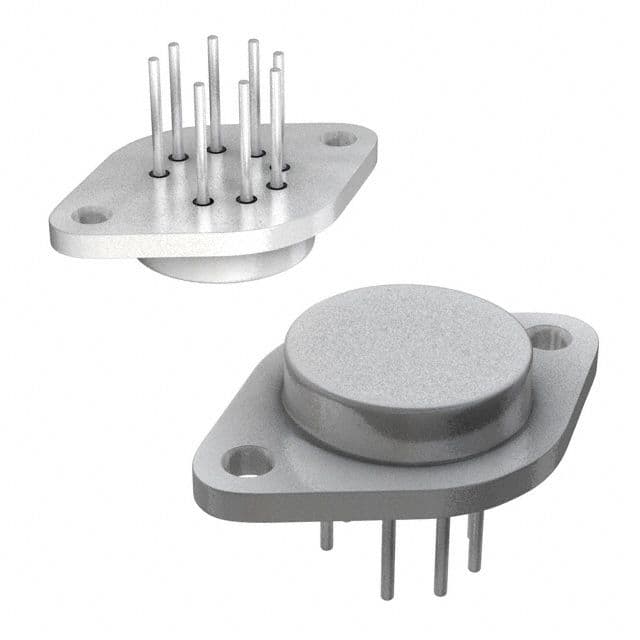

Product Images
