Dual high power operational amplifier featuring a 1.6MHz gain bandwidth product and 7A output current per channel. This BIFET technology amplifier offers a 96dB voltage gain and 8V/µs slew rate. Operating from ±10V to ±40V dual supply, it provides 95dB common mode rejection ratio and 250µV input offset voltage. Packaged in a TO-3-8 through-hole mount, it operates across a -40°C to 125°C temperature range.
PackageTO-3-8
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments OPA2541SMQ technical specifications.
General
Amplifier Type
POWER
Package/Case
TO-3-8
Common Mode Rejection Ratio
95dB
Gain Bandwidth Product
1.6MHz
Input Bias Current
15pA
Input Offset Voltage (Vos)
250uV
Lead Free
Contains Lead
Max Dual Supply Voltage
40V
Min Dual Supply Voltage
10V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Channels
2
Number of Circuits
2
Operating Supply Current
40mA
Operating Supply Voltage
40V
Output Current per Channel
7A
Package Quantity
1
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Slew Rate
8V/µs
Technology
BIFET
Voltage Gain
96dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA2541SMQ Datasheet
Download the complete datasheet for Texas Instruments OPA2541SMQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

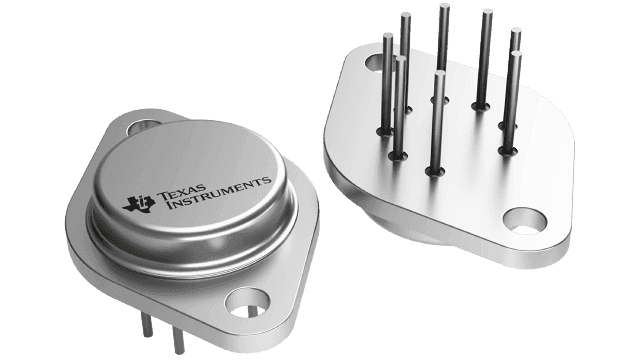

Product Images
