Dual operational amplifier featuring a 1.4MHz gain bandwidth product and 8V/µs slew rate. This general-purpose amplifier offers a high output current of 2A (4A per channel) and operates with dual supply voltages from 10V to 35V. Housed in a TO-220 package, it boasts a 90dB common mode rejection ratio and a voltage gain of 103dB. Designed for a wide operating temperature range of -40°C to 105°C, this RoHS compliant component utilizes BIFET technology.
PackageTO-220
Current30mA
Quick Jump:
Technical Specifications
Texas Instruments OPA2544T technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
1.4MHz
Package/Case
TO-220
Common Mode Rejection Ratio
90dB
Dual Supply Voltage
28V
Gain Bandwidth Product
1.4MHz
Height
4.5mm
Input Bias Current
50pA
Input Offset Voltage (Vos)
5mV
Lead Free
Lead Free
Length
20.02mm
Max Dual Supply Voltage
35V
Min Dual Supply Voltage
10V
Max I/O Voltage
5mV
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Nominal Gain Bandwidth Product
1.4MHz
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
22mA
Output Current
2A
Output Current per Channel
4A
Package Quantity
25
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
8V/µs
Supply Current
30mA
Technology
BIFET
Unity Gain Bandwidth Product
1.4MHz
Voltage Gain
103dB
Width
10.7mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA2544T Datasheet
Download the complete datasheet for Texas Instruments OPA2544T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

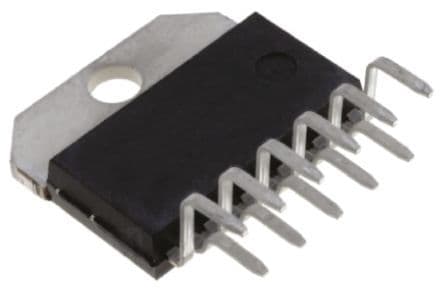

Product Images
