High-performance bus transceiver featuring a single port and dual drivers, designed for VDSL2 and PLC applications. Boasts a 120MHz bandwidth and a 420MHz gain bandwidth product, with a rapid 5000V/µs slew rate. Operates from a 5.5V to 12.6V supply voltage, consuming a maximum of 25mA. Housed in a compact 4.15mm x 4.15mm x 0.95mm VQFN package, suitable for operation between -40°C and 85°C.
PackageVQFN
Current1mA
Quick Jump:
Technical Specifications
Texas Instruments OPA2670IRGVT technical specifications.
General
| Bandwidth | 120MHz |
| Package/Case | VQFN |
| Common Mode Rejection Ratio | 48dB |
| Gain Bandwidth Product | 420MHz |
| Height | 0.95mm |
| Input Bias Current | 34uA |
| Input Offset Voltage (Vos) | 7.2mV |
| Lead Free | Contains Lead |
| Length | 4.15mm |
| Max I/O Voltage | 6mV |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 2W |
| Max Supply Current | 25mA |
| Max Supply Voltage | 12.6V |
| Min Supply Voltage | 5.5V |
| Number of Amplifiers | 2 |
| Number of Channels | 1 |
| Number of Drivers | 2 |
| Operating Supply Voltage | 12V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 5000V/µs |
| Supply Current | 1mA |
| Width | 4.15mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments OPA2670IRGVT Datasheet
Download the complete datasheet for Texas Instruments OPA2670IRGVT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

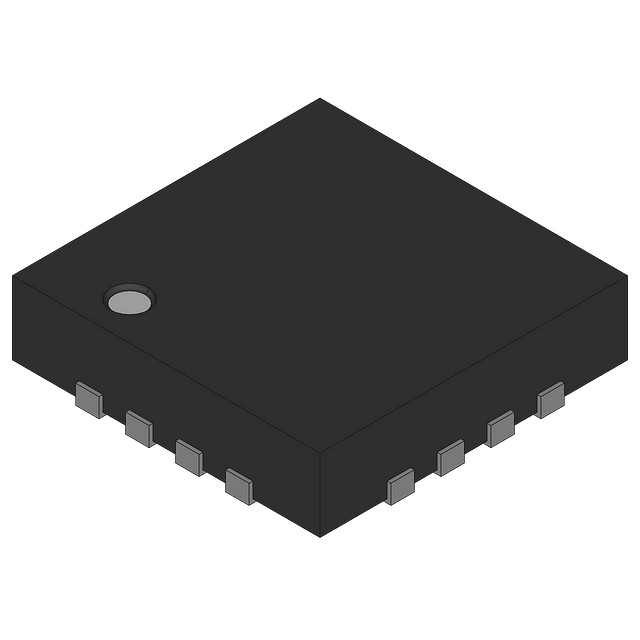

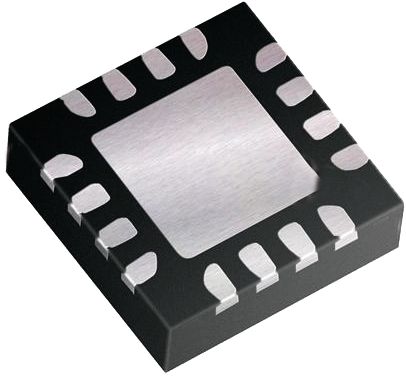

Product Images
