Dual wideband, voltage feedback operational amplifier featuring a 300MHz bandwidth and 500MHz -3dB bandwidth. This 2-channel amplifier offers a high slew rate of 1800V/µs and a 300MHz gain bandwidth product. Operating from a dual supply voltage range of 2.5V to 6V, it provides a 190mA output current per channel. The component is housed in an 8-SOIC package and operates within a temperature range of -40°C to 85°C.
PackageD
Current11.6mA
Quick Jump:
Technical Specifications
Texas Instruments OPA2690ID technical specifications.
General
-3db Bandwidth
500MHz
Bandwidth
300MHz
Package/Case
D
Common Mode Rejection Ratio
58dB
Dual Supply Voltage
3V
Gain Bandwidth Product
300MHz
Height
1.58mm
Input Bias Current
12uA
Input Offset Voltage (Vos)
4.5mV
Lead Free
Lead Free
Length
4.9mm
Max Dual Supply Voltage
6V
Min Dual Supply Voltage
2.5V
Max I/O Voltage
4.5mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
12V
Min Supply Voltage
5V
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
11mA
Operating Supply Voltage
9V
Output Current
190mA
Output Current per Channel
190mA
Package Quantity
75
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
72dB
Quiescent Current
6.3A
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
OPA2690
Settling Time
8ns
Slew Rate
1800V/µs
Supply Current
11.6mA
Unity Gain Bandwidth Product
250MHz
Voltage Gain
63dB
Weight
0.002677oz
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA2690ID Datasheet
Download the complete datasheet for Texas Instruments OPA2690ID to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

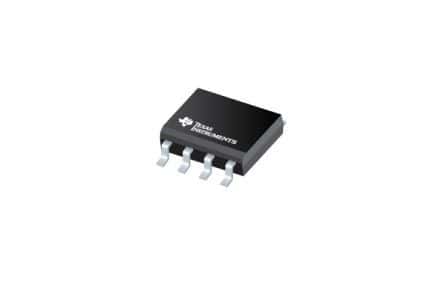

Product Images
