The OPA361AQDCKRQ1 is a single video amplifier with a gain of 14.3dB and a -3dB bandwidth of 9MHz. It is available in a SC package and is suitable for surface mount applications. The amplifier operates over a temperature range of -40°C to 125°C and is compliant with AEC-Q100. It can supply up to 80mA of current per channel and has an operating supply current of 5.3mA.
PackageSC
Current5.3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments OPA361AQDCKRQ1 technical specifications.
General
| -3db Bandwidth | 9MHz |
| Package/Case | SC |
| Gain | 14.3dB |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.3V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Operating Supply Current | 5.3mA |
| Operating Supply Voltage | 3V |
| Output Current per Channel | 80mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
| Supply Current | 5.3mA |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments OPA361AQDCKRQ1 Datasheet
Download the complete datasheet for Texas Instruments OPA361AQDCKRQ1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

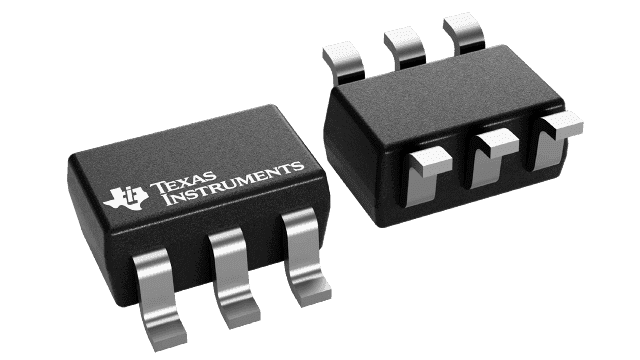

Product Images
