Texas Instruments
OPA362AIDCKR
3V Video Amplifier with Internal Gain and Filter in SC70 6-SC70 -40 to 125
PackageSC
Current4.3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments OPA362AIDCKR technical specifications.
General
| -3db Bandwidth | 8.5MHz |
| Package/Case | SC |
| Gain | 5.17dB |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.3V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Operating Supply Current | 4.3mA |
| Operating Supply Voltage | 3V |
| Output Current per Channel | 80mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 4.3mA |
| Supply Type | Single |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments OPA362AIDCKR Datasheet
Download the complete datasheet for Texas Instruments OPA362AIDCKR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

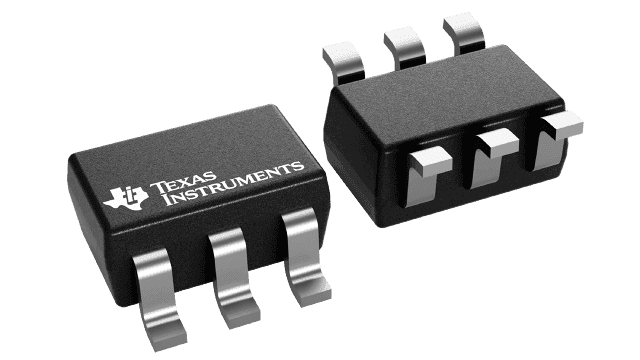

Product Images
