High-performance, 3-circuit current feedback operational amplifier featuring a 1.9GHz gain bandwidth product and 250MHz -3dB bandwidth. This surface mount IC offers a 380V/µs slew rate and 160mA output current per channel, operating from dual supply voltages between 2.5V and 6V, with a maximum single supply of 12V. Achieving 51dB CMRR and 65dB PSRR, it is housed in a 16-pin SSOP package and operates across a -40°C to 85°C temperature range.
PackageSSOP
Current5.4mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments OPA3684IDBQR technical specifications.
General
-3db Bandwidth
250MHz
Bandwidth
140MHz
Package/Case
SSOP
Common Mode Rejection Ratio
51dB
Dual Supply Voltage
5V
Gain Bandwidth Product
1.9GHz
Input Bias Current
12uA
Input Offset Voltage (Vos)
1.5mV
Max Dual Supply Voltage
6V
Min Dual Supply Voltage
2.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
12V
Min Supply Voltage
5V
Mount
Surface Mount
Number of Channels
3
Number of Circuits
3
Number of Elements
3
Operating Supply Current
1.7mA
Output Current per Channel
160mA
Package Quantity
1
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
65dB
RoHS Compliant
Yes
Slew Rate
380V/µs
Supply Current
5.4mA
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA3684IDBQR Datasheet
Download the complete datasheet for Texas Instruments OPA3684IDBQR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

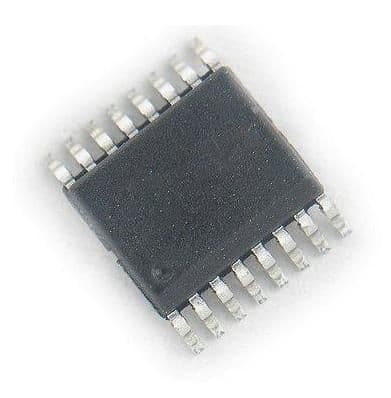

Product Images
