High-performance operational amplifier featuring a 1.8MHz gain bandwidth product and 10V/µs slew rate. This general-purpose op-amp offers a wide operating supply voltage range of 10V to 40V dual supply, with a maximum output current of 50mA. It boasts a high voltage gain of 110dB and a common mode rejection ratio of 86dB, housed in a TO-220 package. Operating across a temperature range of -40°C to 125°C, this lead-free component ensures reliable performance in demanding applications.
PackageTO-220
Current6.5mA
Quick Jump:
Technical Specifications
Texas Instruments OPA452TA-1 technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
1.8MHz
Package/Case
TO-220
Common Mode Rejection Ratio
86dB
Dual Supply Voltage
28V
Gain Bandwidth Product
1.8MHz
Height
4.6mm
Input Bias Current
100pA
Input Offset Voltage (Vos)
3mV
Lead Free
Lead Free
Length
10.16mm
Max Dual Supply Voltage
40V
Min Dual Supply Voltage
10V
Max I/O Voltage
3mV
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Nominal Gain Bandwidth Product
1.8MHz
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
5.5mA
Operating Supply Voltage
40V
Output Current
50mA
Output Current per Channel
50mA
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
10V/µs
Supply Current
6.5mA
Unity Gain Bandwidth Product
1.8MHz
Voltage Gain
110dB
Width
8.34mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA452TA-1 Datasheet
Download the complete datasheet for Texas Instruments OPA452TA-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

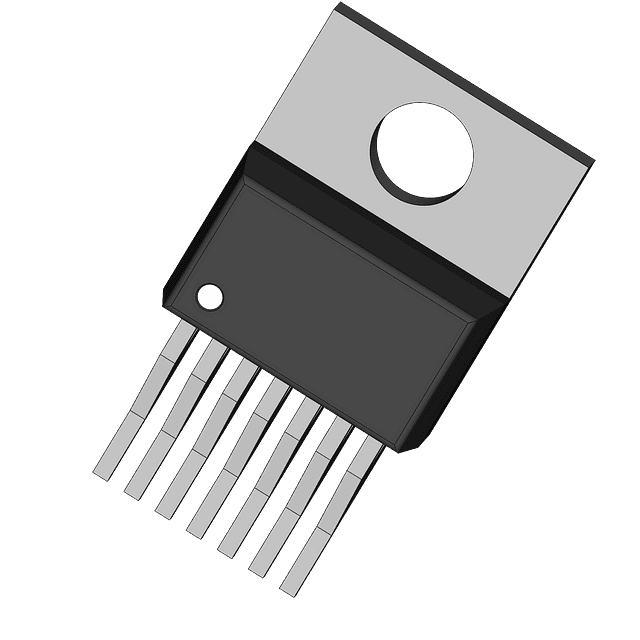

Product Images
