High-voltage, high-current operational amplifier featuring a 1MHz gain bandwidth product and 2A output current. This general-purpose op amp offers a 6V/µs slew rate and 115dB voltage gain, suitable for demanding applications. It operates with dual supply voltages from ±4V to ±30V or single supply from 8V to 60V, with a maximum operating temperature of 85°C. The TO-220-7 package is lead-free and RoHS compliant, providing a robust solution for power amplification needs.
PackageTO-220-7
Current15mA
Quick Jump:
Technical Specifications
Texas Instruments OPA547TG3 technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
1MHz
Package/Case
TO-220-7
Common Mode Rejection Ratio
80dB
Gain Bandwidth Product
1MHz
Input Bias Current
500nA
Input Offset Voltage (Vos)
5mV
Lead Free
Lead Free
Max Dual Supply Voltage
30V
Min Dual Supply Voltage
4V
Max I/O Voltage
5mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
60V
Min Supply Voltage
8V
Nominal Gain Bandwidth Product
1MHz
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
10mA
Operating Supply Voltage
30V
Output Current
2A
Output Current per Channel
750mA
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Slew Rate
6V/µs
Supply Current
15mA
Unity Gain Bandwidth Product
1MHz
Voltage Gain
115dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA547TG3 Datasheet
Download the complete datasheet for Texas Instruments OPA547TG3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

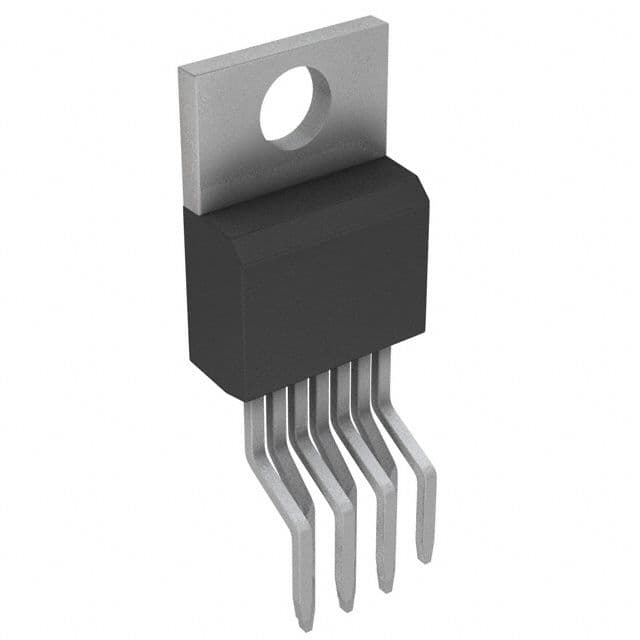

Product Images
