High current operational amplifier featuring a 17MHz bandwidth and 1.2A output current. This general-purpose op-amp offers a 50V/µs slew rate and 100dB voltage gain. Operating from a 3.5V to 16V supply range, it functions across -40°C to 125°C. Packaged in a 20-lead HTSSOP, this RoHS compliant component is supplied on tape and reel.
PackageHTSSOP
Current60mA
Quick Jump:
Technical Specifications
Texas Instruments OPA561PWP/2K technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
17MHz
Package/Case
HTSSOP
Common Mode Rejection Ratio
70dB
Gain Bandwidth Product
17MHz
Input Bias Current
100pA
Input Offset Voltage (Vos)
1mV
Lead Free
Lead Free
Max Dual Supply Voltage
8V
Min Dual Supply Voltage
3.5V
Max I/O Voltage
20mV
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
16V
Min Supply Voltage
7V
Nominal Gain Bandwidth Product
17MHz
Number of Channels
1
Number of Circuits
1
Operating Supply Current
50mA
Operating Supply Voltage
8V
Output Current
1.2A
Output Current per Channel
1.2A
Package Quantity
2000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Slew Rate
50V/µs
Supply Current
60mA
Voltage Gain
100dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA561PWP/2K Datasheet
Download the complete datasheet for Texas Instruments OPA561PWP/2K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

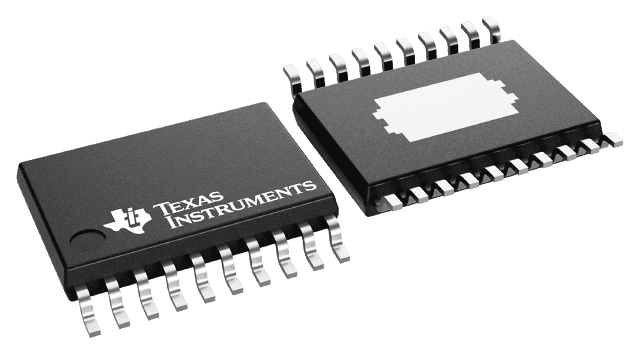

Product Images
