High current operational amplifier featuring a 17MHz gain bandwidth product and 1.2A output current. This general-purpose op-amp offers a 50V/µs slew rate and 100dB voltage gain. Operates from a 7V to 16V supply voltage range with a maximum dual supply voltage of 8V. Packaged in a 20-pin HTSSOP, it functions across an extended temperature range of -40°C to 125°C.
PackageHTSSOP
Current60mA
Quick Jump:
Technical Specifications
Texas Instruments OPA561PWPG4 technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
17MHz
Package/Case
HTSSOP
Common Mode Rejection Ratio
70dB
Gain Bandwidth Product
17MHz
Input Bias Current
100pA
Input Offset Voltage (Vos)
1mV
Lead Free
Lead Free
Max Dual Supply Voltage
8V
Min Dual Supply Voltage
3.5V
Max I/O Voltage
20mV
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
16V
Min Supply Voltage
7V
Nominal Gain Bandwidth Product
17MHz
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Operating Supply Current
50mA
Operating Supply Voltage
8V
Output Current
1.2A
Output Current per Channel
1.2A
Package Quantity
70
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
50V/µs
Supply Current
60mA
Voltage Gain
100dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA561PWPG4 Datasheet
Download the complete datasheet for Texas Instruments OPA561PWPG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

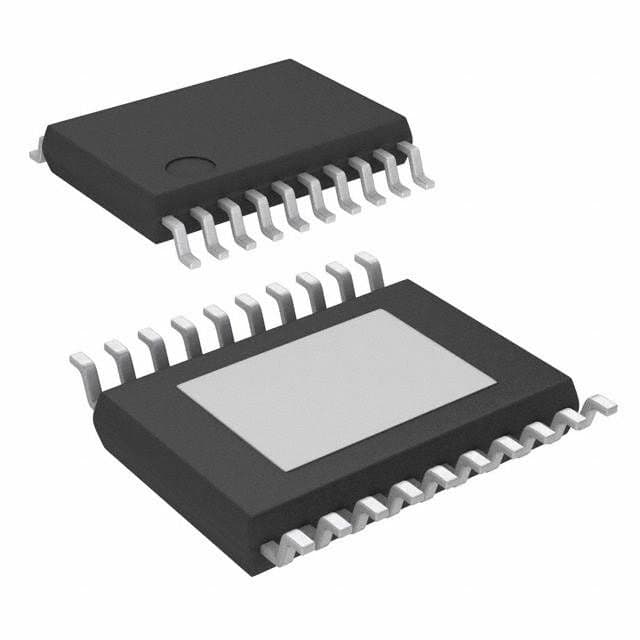

Product Images
