High-performance single-channel operational amplifier featuring 2A output current and 2.4A output current per channel. This general-purpose op-amp offers a 1.2MHz bandwidth and 1.2V/µs slew rate, with a 1.2MHz gain bandwidth product. Operating from 2.7V to 5.5V supply voltages, it boasts a 126dB voltage gain and 80dB CMRR. The device is housed in a VQFN package, suitable for operation across a -55°C to 125°C temperature range, and is RoHS compliant.
PackageVQFN
Current6mA
Quick Jump:
Technical Specifications
Texas Instruments OPA567AIRHGR technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
1.2MHz
Package/Case
VQFN
Common Mode Rejection Ratio
80dB
Gain Bandwidth Product
1.2MHz
Input Bias Current
10pA
Input Offset Voltage (Vos)
2mV
Lead Free
Lead Free
Max I/O Voltage
2mV
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Nominal Gain Bandwidth Product
1.2MHz
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
9mA
Output Current
2A
Output Current per Channel
2.4A
Package Quantity
2500
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
98.42dB
Radiation Hardening
No
RoHS Compliant
Yes
Slew Rate
1.2V/µs
Supply Current
6mA
Unity Gain Bandwidth Product
1.2MHz
Voltage Gain
126dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA567AIRHGR Datasheet
Download the complete datasheet for Texas Instruments OPA567AIRHGR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

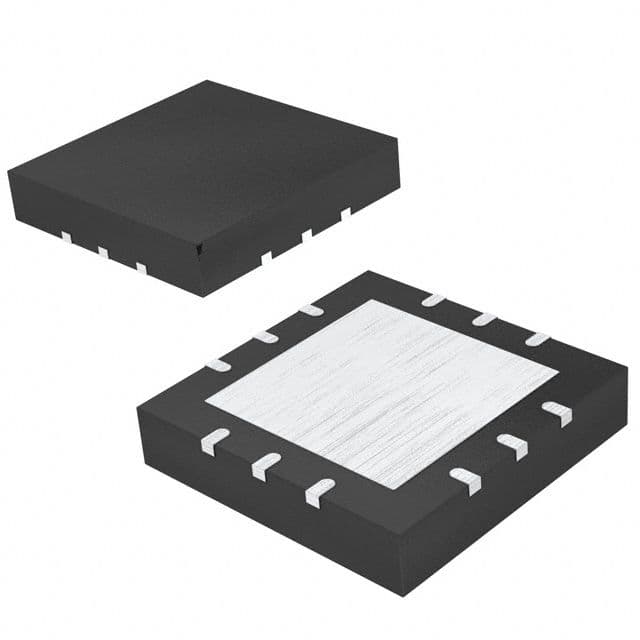

Product Images
