High-performance single-channel operational amplifier featuring a 1.2MHz gain bandwidth product and 1.2V/µs slew rate. Delivers up to 2A output current with output signal swings within 200mV of rails. Operates from a 2.7V to 5.5V supply voltage, exhibiting a 126dB voltage gain and 60dB common mode rejection ratio. This lead-free, RoHS compliant component is housed in a 20-SO PowerPAD package, suitable for operation between -55°C and 125°C.
PackageHSOP
Current6mA
Quick Jump:
Technical Specifications
Texas Instruments OPA569AIDWP technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
1.2MHz
Package/Case
HSOP
Common Mode Rejection Ratio
60dB
Gain Bandwidth Product
1.2MHz
Height
2.55mm
Input Bias Current
10pA
Input Offset Voltage (Vos)
2mV
Lead Free
Lead Free
Length
12.82mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
9mA
Output Current
2A
Output Current per Channel
2.4A
Package Quantity
25
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
98.42dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
1.2V/µs
Supply Current
6mA
Unity Gain Bandwidth Product
1.2MHz
Voltage Gain
126dB
Width
7.52mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA569AIDWP Datasheet
Download the complete datasheet for Texas Instruments OPA569AIDWP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

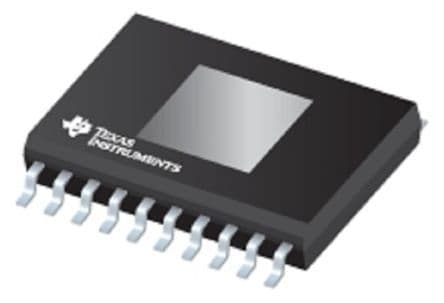

Product Images
