High-performance single-channel operational amplifier featuring a 1.2MHz gain bandwidth product and 1.2V/µs slew rate. Delivers up to 2A output current with output signal swings within 200mV of rails. Operates from a 2.7V to 5.5V supply range, with a typical operating supply current of 9mA. Offers a 126dB voltage gain and 60dB common mode rejection ratio. Packaged in a 20-SO PowerPAD for efficient thermal management, suitable for operation between -55°C and 125°C.
PackageHSOP
Current6mA
Quick Jump:
Technical Specifications
Texas Instruments OPA569AIDWPRG4 technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
1.2MHz
Package/Case
HSOP
Common Mode Rejection Ratio
60dB
Gain Bandwidth Product
1.2MHz
Input Bias Current
10pA
Input Offset Voltage (Vos)
2mV
Lead Free
Contains Lead
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
9mA
Output Current
2A
Output Current per Channel
2.4A
Package Quantity
1000
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
98.42dB
Radiation Hardening
No
RoHS Compliant
Yes
Slew Rate
1.2V/µs
Supply Current
6mA
Unity Gain Bandwidth Product
1.2MHz
Voltage Gain
126dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA569AIDWPRG4 Datasheet
Download the complete datasheet for Texas Instruments OPA569AIDWPRG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

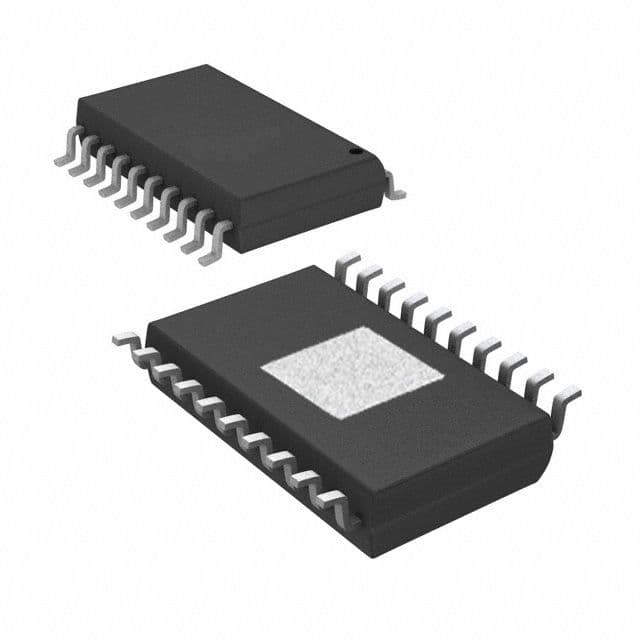

Product Images
