High-performance, single-channel operational amplifier featuring a 205MHz -3dB bandwidth and 118MHz gain bandwidth product. This rail-to-rail output, negative rail input voltage feedback amplifier offers a 560V/µs slew rate and 30ns settling time. Operating from 2.5V to 5.5V supply, it consumes 1mA of supply current and delivers 50mA output current per channel. Achieving 122dB voltage gain, it boasts 94dB CMRR and PSRR, with 400µV input offset voltage and 1µA input bias current. Packaged in a 10-QFN WFQFN, this lead-free, RoHS compliant component operates from -40°C to 125°C.
PackageWFQFN
Quick Jump:
Technical Specifications
Texas Instruments OPA836IRUNR technical specifications.
General
-3db Bandwidth
205MHz
Package/Case
WFQFN
Common Mode Rejection Ratio
94dB
Gain Bandwidth Product
118MHz
Input Bias Current
1uA
Input Offset Voltage (Vos)
400uV
Lead Free
Lead Free
Max I/O Voltage
400uV
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
1mA
Output Current per Channel
50mA
Package Quantity
1
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
94dB
Radiation Hardening
No
RoHS Compliant
Yes
Settling Time
30ns
Slew Rate
560V/µs
Unity Gain Bandwidth Product
118MHz
Voltage Gain
122dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments OPA836IRUNR Datasheet
Download the complete datasheet for Texas Instruments OPA836IRUNR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

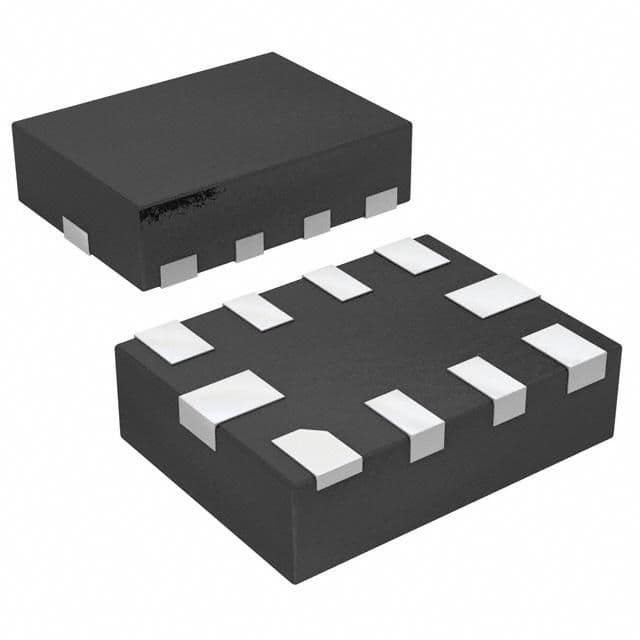

Product Images
