I2C logic buffer featuring two channels, designed for 2-wire bus interfaces. Operates across a wide voltage range from 2V to 15V, supporting 2.5V, 3.3V, 5V, 9V, and 12V logic levels. Offers a low level output current of 3mA and a typical operating supply current of 4mA. Packaged in a compact 8-pin VSSOP with dimensions of 3.1mm x 3.1mm x 0.95mm, supplied on tape and reel. Features a propagation delay of 5ns and a turn-on delay time of 270ns, with an operating temperature range of -40°C to 85°C. This component is RoHS compliant.
PackageVSSOP
Current900uA
Quick Jump:
Technical Specifications
Texas Instruments P82B96DGKR technical specifications.
General
Package/Case
VSSOP
Height
0.95mm
Input
2-Wire Bus
Lead Free
Lead Free
Length
3.1mm
Low Level Output Current
3mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
15V
Min Supply Voltage
2V
Number of Channels
2
Number of Outputs
2
Operating Supply Current
4mA
Package Quantity
2500
Packaging
Tape and Reel
Propagation Delay
5ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
900uA
Turn-On Delay Time
270ns
Width
3.1mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments P82B96DGKR Datasheet
Download the complete datasheet for Texas Instruments P82B96DGKR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

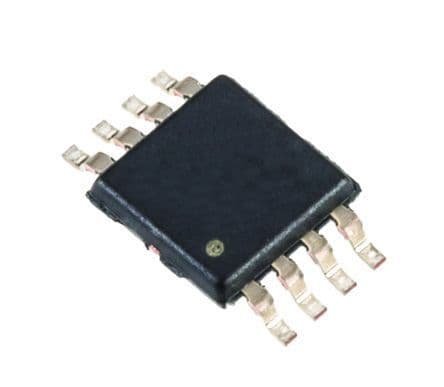

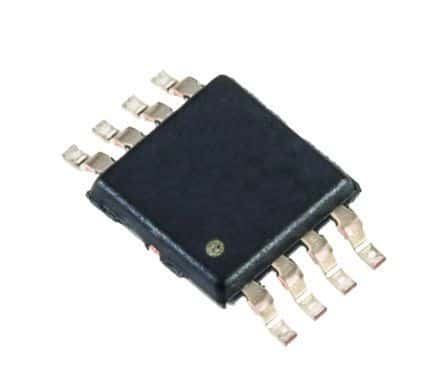

Product Images
