2-channel I2C logic buffer supporting 2.5V, 3.3V, 5V, 9V, and 12V operation. Features a 5ns propagation delay and operates from -40°C to 85°C with a maximum supply voltage of 18V. This RoHS compliant, lead-free component is supplied in a 2500-piece tape and reel, packaged in an 8-pin SOIC.
PackageD
Current900uA
Quick Jump:
Technical Specifications
Texas Instruments P82B96DR technical specifications.
General
Package/Case
D
Input
2-Wire Bus
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
18V
Min Supply Voltage
-300mV
Number of Channels
2
Number of Outputs
2
Operating Supply Current
4mA
Package Quantity
2500
Packaging
Tape and Reel
Propagation Delay
5ns
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
900uA
Compliance
RoHS
Compliant
Datasheet
Texas Instruments P82B96DR Datasheet
Download the complete datasheet for Texas Instruments P82B96DR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

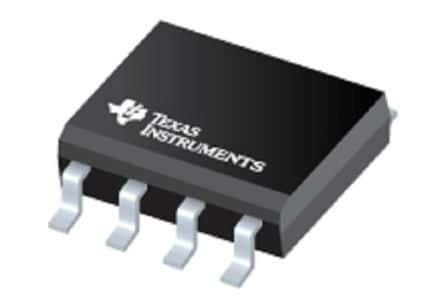

Product Images
