2-bit bidirectional I²C and SMBus voltage-level shifter, this interface IC translates between different voltage domains. Featuring two bidirectional channels, it operates across a supply voltage range of 0V to 5V. The component offers a low-level output current of 128mA and exhibits a propagation delay and turn-on delay time of 1.4ns. Encased in a compact 8-X2SON package with dimensions of 1.45mm x 1.05mm x 0.35mm, it is RoHS compliant and suitable for operation between -40°C and 85°C.
PackageSON
Quick Jump:
Technical Specifications
Texas Instruments PCA9306DQER technical specifications.
General
Package/Case
SON
Channel Type
Bidirectional
Height
0.35mm
Lead Free
Lead Free
Length
1.45mm
Logic Function
Translator
Low Level Output Current
128mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5V
Min Supply Voltage
0V
Number of Circuits
1
Number of Outputs
2
Package Quantity
5000
Packaging
Tape and Reel
Propagation Delay
1.4ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Turn-On Delay Time
1.4ns
Width
1.05mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments PCA9306DQER Datasheet
Download the complete datasheet for Texas Instruments PCA9306DQER to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

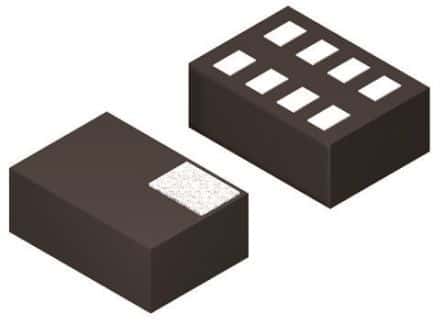

Product Images
