Frequency400kHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments PCA9535RGER technical specifications.
General
Package/Case
QFN
Frequency
400kHz
Interface
I2C, SMBus
Lead Free
Lead Free
Max Frequency
400kHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.3V
Mount
Surface Mount
Number of Bits
16
Number of I/Os
16
Number of Outputs
2
Output Current
-20mA
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Weight
0.001601oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments PCA9535RGER Datasheet
Download the complete datasheet for Texas Instruments PCA9535RGER to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

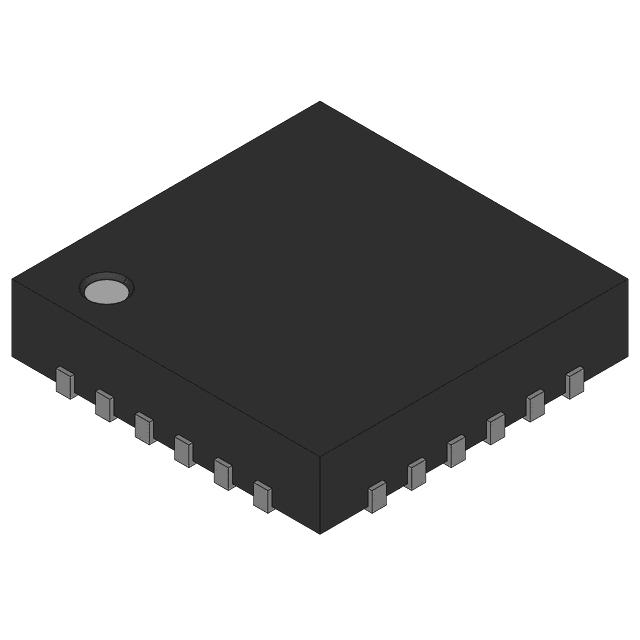

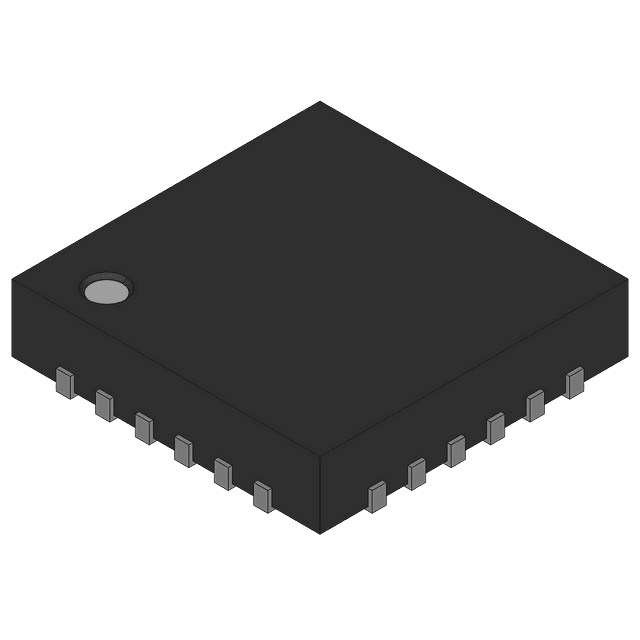

Product Images
