Texas Instruments
PCA9539DWR
Remote 16-Bit I<sup>2</sup>C And SMBus, Low-Power I/O Expander With Interrupt Output, Reset & Config. Registers 24-SOIC -40 to 85
Frequency400kHz
PackageSOIC
Quick Jump:
Technical Specifications
Texas Instruments PCA9539DWR technical specifications.
General
Package/Case
SOIC
Frequency
400kHz
Lead Free
Lead Free
Max Frequency
400kHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.3V
Number of I/Os
16
Number of Outputs
2
Output Current
25mA
Output Type
PUSH-PULL
Package Quantity
2000
Packaging
Cut Tape
Reach SVHC Compliant
No
RoHS Compliant
Yes
Weight
0.022025oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments PCA9539DWR Datasheet
Download the complete datasheet for Texas Instruments PCA9539DWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

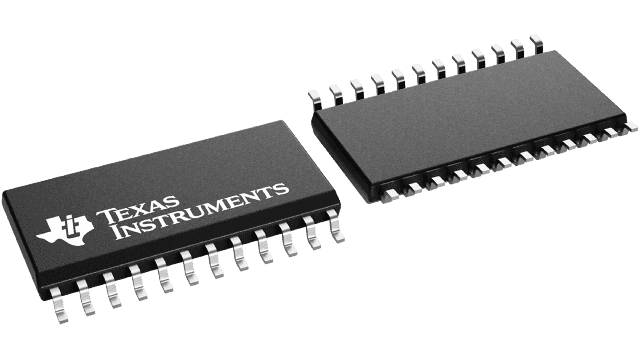

Product Images
