Texas Instruments
PCA9545AGQNR
9545 SERIES, 4 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, PBGA20, PLASTIC, VFBGA-20
PackageVFBGA
Power400mW
Quick Jump:
Technical Specifications
Texas Instruments PCA9545AGQNR technical specifications.
General
Bandwidth
400kHz
Package/Case
VFBGA
Lead Free
Contains Lead
Logic Function
Multiplexer
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.3V
Number of Inputs
4
Number of Outputs
1
Number of Switches
1
Package Quantity
1000
Packaging
Tape and Reel
Power Dissipation
400mW
Propagation Delay
1ns
Radiation Hardening
No
RoHS Compliant
No
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments PCA9545AGQNR Datasheet
Download the complete datasheet for Texas Instruments PCA9545AGQNR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

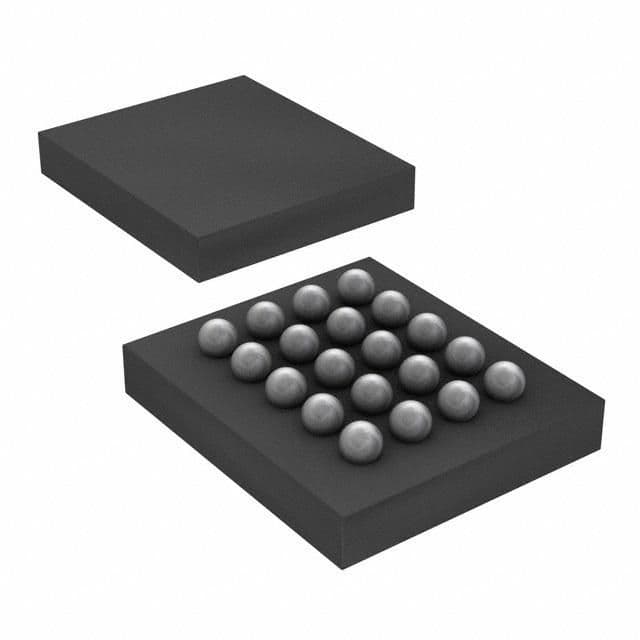

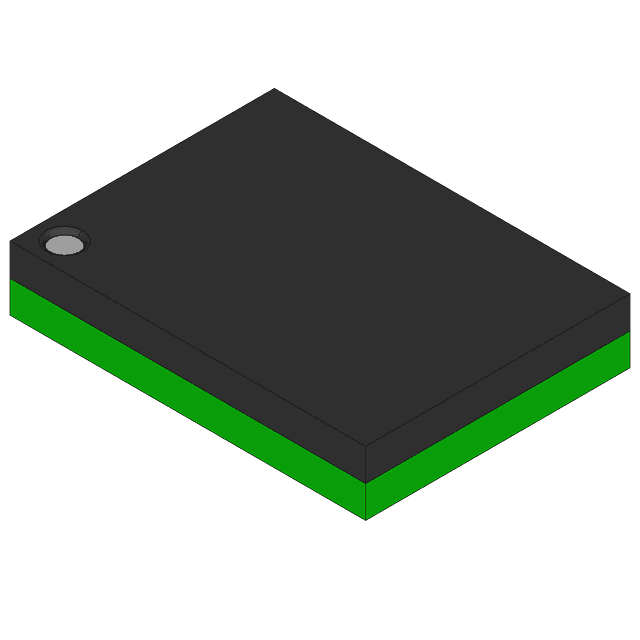

Product Images
