Texas Instruments
PCA9545AZQNR
4-Channel I<sup>2</sup>C And SMBus Multiplexer With Interrupt Logic And Reset Functions 20-BGA MICROSTAR JUNIOR -40 to 85
Frequency400kHz
PackageVFBGA
Power400mW
Quick Jump:
Technical Specifications
Texas Instruments PCA9545AZQNR technical specifications.
General
Bandwidth
400kHz
Package/Case
VFBGA
Lead Free
Lead Free
Logic Function
Multiplexer
Max Frequency
400kHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.3V
Number of Circuits
4
Number of Inputs
4
Number of Outputs
1
Number of Switches
1
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
400mW
Propagation Delay
1ns
Radiation Hardening
No
RoHS Compliant
Yes
Throw Configuration
4PST
Weight
0.000769oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments PCA9545AZQNR Datasheet
Download the complete datasheet for Texas Instruments PCA9545AZQNR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

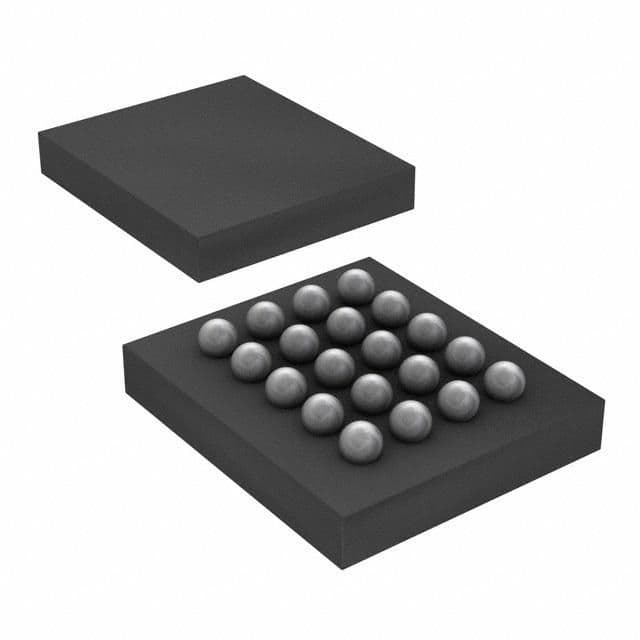

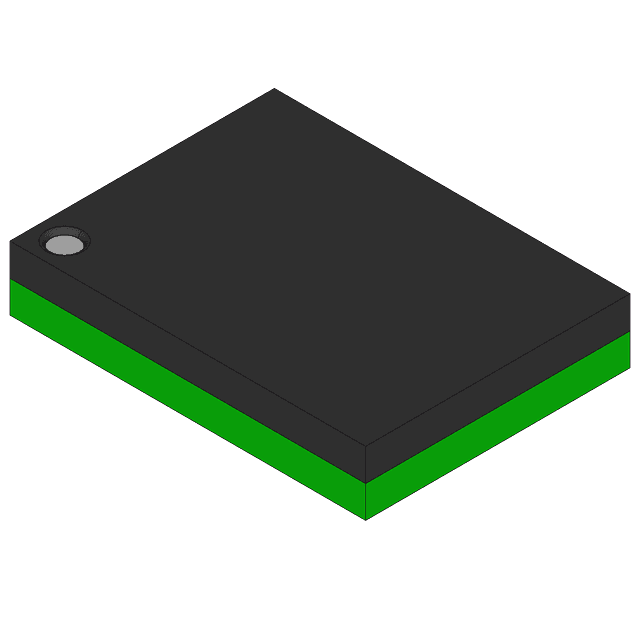

Product Images
