Texas Instruments
PCA9555DBR
Remote 16-Bit I<sup>2</sup>C And SMBus I/O Expander With Interrupt Output And Configuration Registers 24-SSOP -40 to 85
Frequency400kHz
PackageSSOP
Quick Jump:
Technical Specifications
Texas Instruments PCA9555DBR technical specifications.
General
Package/Case
SSOP
Frequency
400kHz
Height
2mm
Lead Free
Lead Free
Length
8.2mm
Max Frequency
400kHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Number of I/Os
16
Number of Outputs
2
Operating Supply Voltage
5.5V
Package Quantity
1
Packaging
Tape and Reel
RoHS Compliant
Yes
Thickness
1.95mm
Weight
0.006081oz
Width
5.3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments PCA9555DBR Datasheet
Download the complete datasheet for Texas Instruments PCA9555DBR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

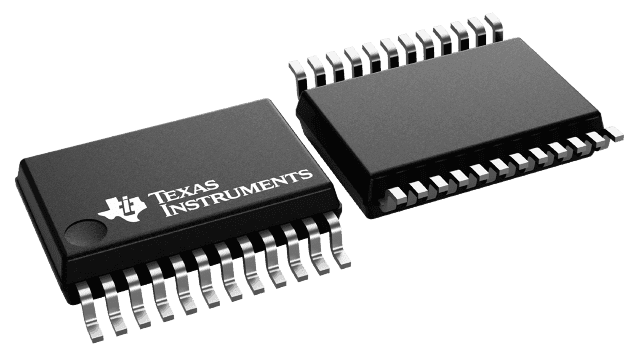

Product Images
