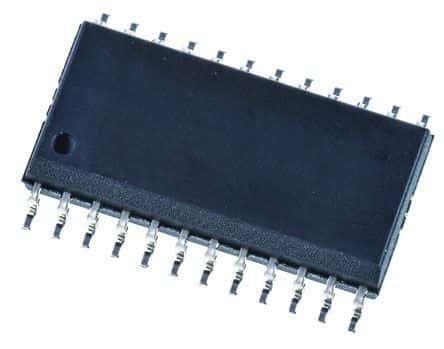

Texas Instruments
PCF8575CDW
16-bit 2.5- to 5.5-V I2C/SMBus I/O expander with interrupt 24-SOIC -40 to 85
Frequency400kHz
PackageSOIC
Quick Jump:
Technical Specifications
Texas Instruments PCF8575CDW technical specifications.
General
Package/Case
SOIC
Frequency
400kHz
Height
2.65mm
Lead Free
Lead Free
Length
15.4mm
Max Frequency
400kHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Number of I/Os
16
Number of Outputs
16
Operating Supply Voltage
5.5V
Package Quantity
25
Packaging
Rail/Tube
RoHS Compliant
Yes
Thickness
2.35mm
Weight
0.022025oz
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments PCF8575CDW Datasheet
Download the complete datasheet for Texas Instruments PCF8575CDW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
