Texas Instruments
PCF8575DW
16-bit 2.5- to 5.5-V I2C/SMBus I/O expander with interrupt 24-SOIC -40 to 85
Frequency400kHz
PackageSOIC
Quick Jump:
Technical Specifications
Texas Instruments PCF8575DW technical specifications.
General
| Package/Case | SOIC |
| Frequency | 400kHz |
| Lead Free | Lead Free |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.5V |
| Number of I/Os | 16 |
| Number of Outputs | 16 |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Weight | 0.022025oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments PCF8575DW Datasheet
Download the complete datasheet for Texas Instruments PCF8575DW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

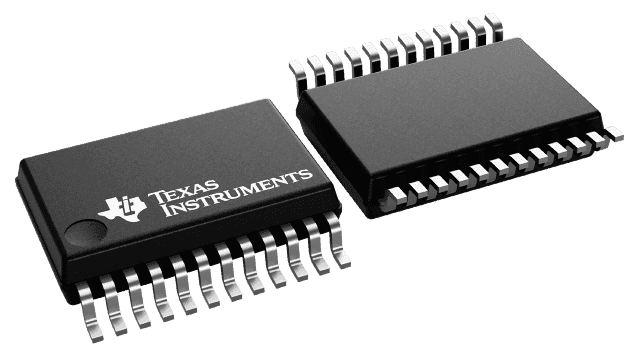

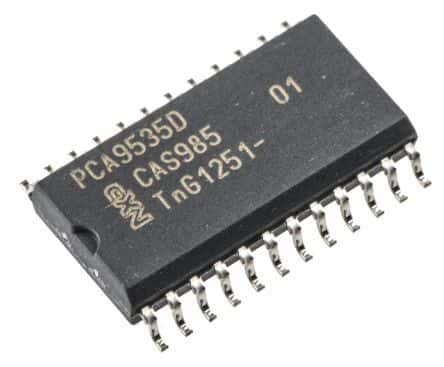

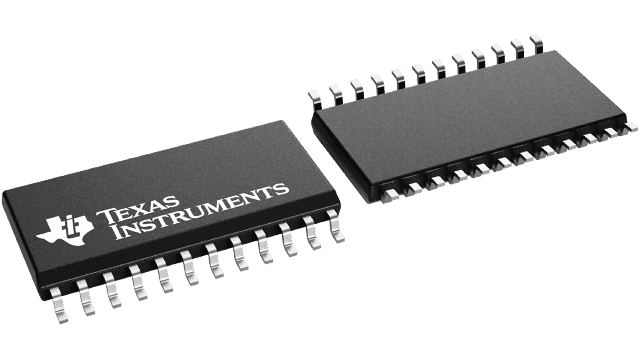

Product Images
