Technical Specifications
Texas Instruments PCM1741E/2K technical specifications.
General
| Package/Case | SSOP |
| Conversion Rate | 96KS/s |
| Interface | Serial, 3-WIRE |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Nominal Supply Current | 13mA |
| Number of Bits | 24 |
| Number of Channels | 2 |
| Number of Converters | 2 |
| Operating Supply Voltage | 3V |
| Output Type | Voltage |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Power Consumption | 43mW |
| Resolution | 24b |
| RoHS Compliant | Yes |
| Series | PCM1741 |
| Signal to Noise Ratio (SNR) | 98dB |
| Weight | 0.002469oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments PCM1741E/2K Datasheet
Download the complete datasheet for Texas Instruments PCM1741E/2K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

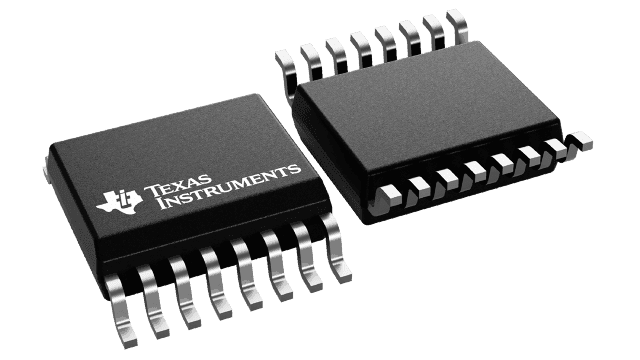

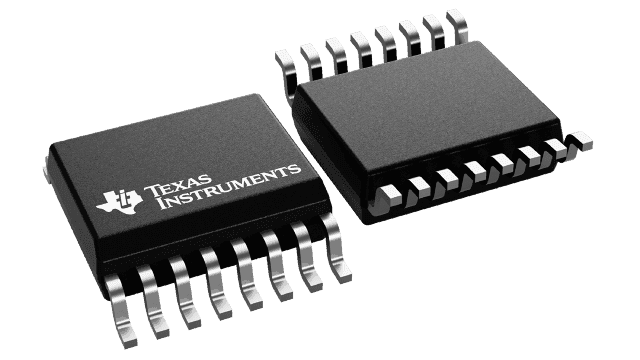

Product Images
