Stereo USB 2.0 FS DAC with 98dB SNR, offering 16-bit resolution and a 48kS/s conversion rate. Features include line-out and S/PDIF outputs, supporting SPI, USB, I2S, and Serial interfaces. This surface-mount TQFP package operates from 3V to 5.25V, with a typical supply current of 35mA, and is lead-free and RoHS compliant. Designed for bus or self-powered operation with software control.
PackageTQFP
Current35mA
MountingSurface Mount
PolarityBipolar
Quick Jump:
Technical Specifications
Texas Instruments PCM2707PJT technical specifications.
General
Package/Case
TQFP
Conversion Rate
48KS/s
Height
1mm
Input Type
SERIAL
Interface
SPI, USB, I2S, Serial
Lead Free
Lead Free
Length
7mm
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Supply Voltage
5.25V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Analog Inputs
0
Number of Analog Outputs
2
Number of Bits
16
Number of Channels
2
Number of Converters
2
Number of D/A Converters
2
Number of DAC Channels
0
Operating Supply Voltage
5V
Output Power
175mW
Output Type
Voltage
Package Quantity
250
Packaging
Tray
Polarity
Bipolar
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
16b
RoHS Compliant
Yes
Sample Rate (Hz)
48kHz
Sampling Rate
48KS/s
Series
PCM2707
Signal to Noise Ratio (SNR)
98dB
Supply Current
35mA
Supply Type
Analog, Digital
Termination
SMD/SMT
Weight
0.002568oz
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments PCM2707PJT Datasheet
Download the complete datasheet for Texas Instruments PCM2707PJT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

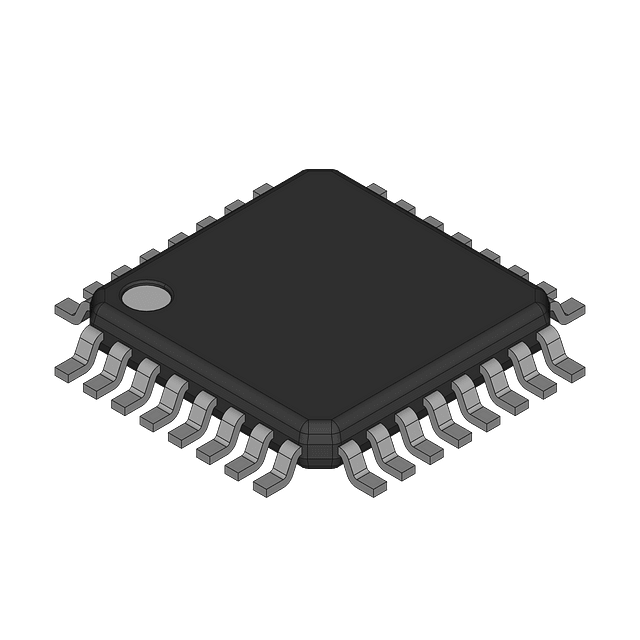

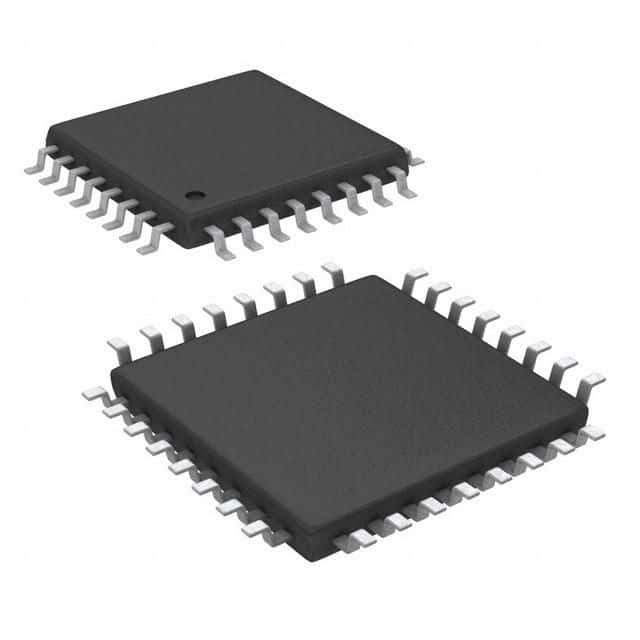

Product Images
