General purpose audio codec featuring 1 analog input and 2 analog outputs. This integrated circuit offers 16-bit resolution with a 92dB signal-to-noise ratio and a 48 kS/s sampling rate. Interface options include USB and Serial, with an operating supply voltage of 5V, ranging from 3V to 5.25V. Packaged in a 32-pin TQFP for surface mounting, this RoHS compliant component operates between -25°C and 85°C.
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments PCM2912APJTR technical specifications.
General
Package/Case
TQFP
Height
1.2mm
Interface
USB, Serial
Lead Free
Lead Free
Length
7mm
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Supply Voltage
5.25V
Min Supply Voltage
3V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
1
Number of Analog Inputs
1
Number of Analog Outputs
2
Number of D/A Converters
1
Number of DAC Channels
2
Operating Supply Voltage
5V
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Resolution
16b
RoHS Compliant
Yes
Sampling Rate
48KS/s
Signal to Noise Ratio (SNR)
92dB
Thickness
1mm
Type
General Purpose
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments PCM2912APJTR Datasheet
Download the complete datasheet for Texas Instruments PCM2912APJTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

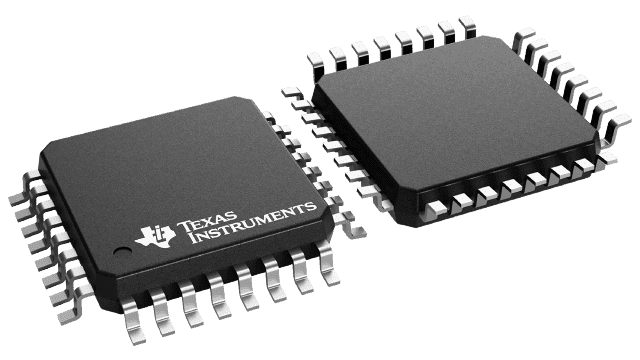

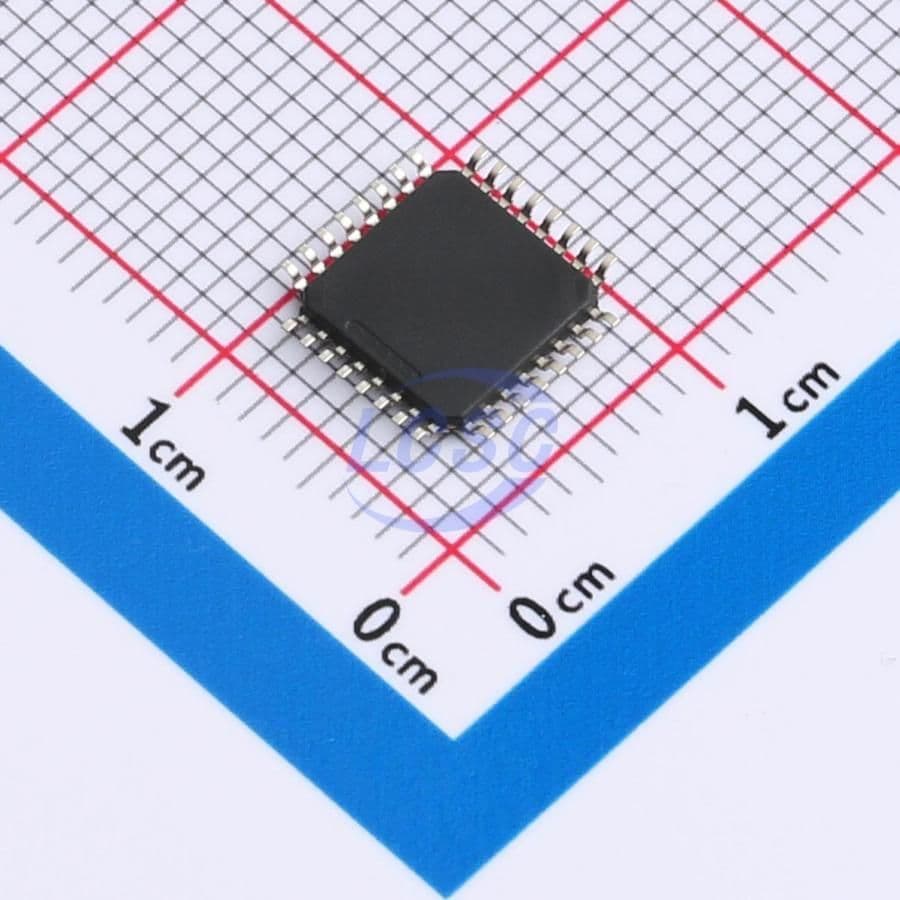

Product Images
