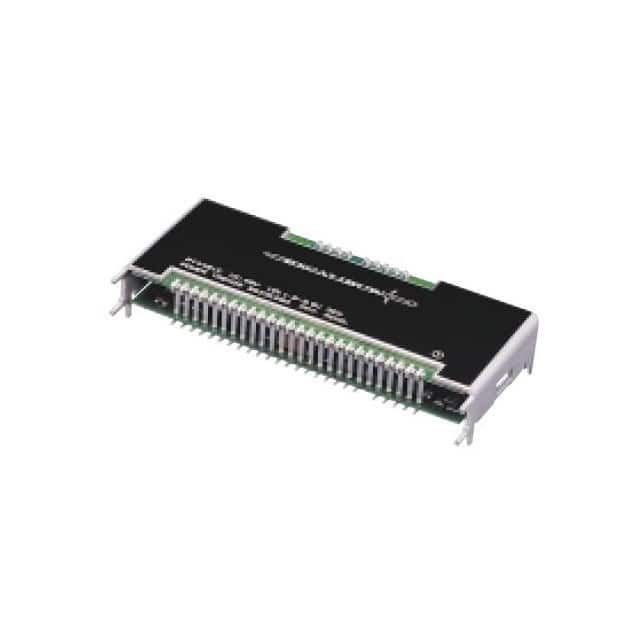

100W DC-DC converter module with a single 5.7V output, delivering up to 20A. Features include over-voltage, over-current, over-temperature, and under-voltage lockout protection. This surface-mount device operates from an 18V to 36V input, boasts 90% efficiency, and offers 1.5kV isolation. Designed for board mounting, it operates within a -40°C to 85°C temperature range.
PackageSMD/SMT
MountingSurface Mount
Power100W
Quick Jump:
Technical Specifications
Texas Instruments PT4473C technical specifications.
General
Package/Case
SMD/SMT
Efficiency
90%
Features
UVLO, OVP, OCP, OTP
Height
0.5inch
Isolation Voltage
1.5kV
Lead Free
Contains Lead
Length
3.61inch
Max Input Voltage
36V
Min Input Voltage
18V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
20A
Max Power Dissipation
100W
Mount
Surface Mount
Number of Outputs
1
Output Current
20A
Output Power
100W
Output Voltage
5.7V
Package Quantity
6
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
No
Series
Excalibur™ PT4473
Voltage - Output 1
5.7V
Width
1.62inch
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments PT4473C Datasheet
Download the complete datasheet for Texas Instruments PT4473C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
