30A, 2.5V output plug-in power module with 3.3V input. Features 93% efficiency and adjustable output voltage from 800mV to 2.5V. Operating temperature range of -40°C to 85°C. Includes UVLO, OCP, and OTP protection. Surface mount module with 30A maximum output current and 75W maximum output power.
PackageSMD/SMT
Quick Jump:
Technical Specifications
Texas Instruments PTH03030WAST technical specifications.
General
Package/Case
SMD/SMT
Current - Output 1
30A
Depth
34.8mm
Efficiency
93%
Features
UVLO, OCP, OTP
Height
0.38inch
Lead Free
Contains Lead
Length
1.37inch
Max Input Voltage (DC)
3.65V
Min Input Voltage (DC)
2.95V
Max Input Voltage
3.65V
Min Input Voltage
2.95V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
30A
Max Output Power
75W
Max Output Voltage
2.5V
Min Output Voltage
800mV
Max Power Dissipation
75W
Number of Outputs
1
Output Current
30A
Output Voltage
2.5V
Package Quantity
200
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
No
Series
PTH03030W
Voltage - Output 1
2.5V
Width
1.12inch
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments PTH03030WAST Datasheet
Download the complete datasheet for Texas Instruments PTH03030WAST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

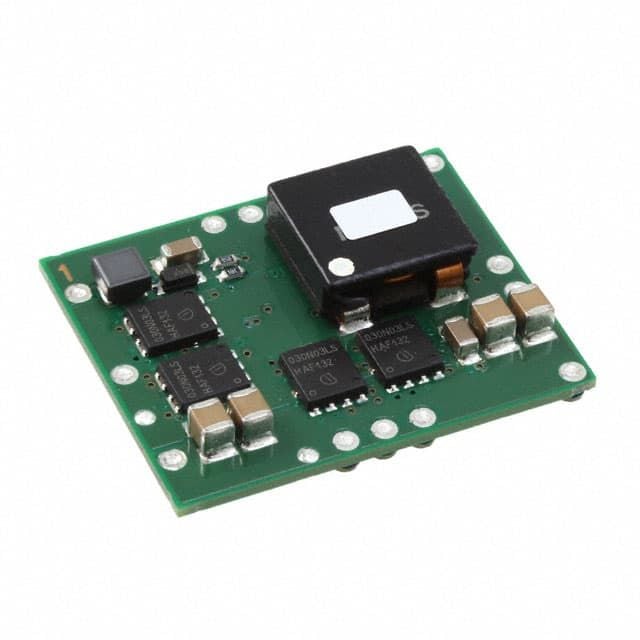

Product Images
