3A, 3.6V non-isolated DC-DC controller and regulator module with adjustable output voltage from 0.9V to 3.6V. Features 92% efficiency and a 3V to 5.5V input voltage range. Integrated UVLO, OCP, and OTP protection. Packaged in a 6-pin SMD tray.
PackageSMD/SMT
Quick Jump:
Technical Specifications
Texas Instruments PTH04000WAZ technical specifications.
General
Package/Case
SMD/SMT
Current - Output 1
3A
Depth
18.92mm
Efficiency
92%
Features
UVLO, OCP, OTP
Height
0.36inch
Isolation
Non-Isolated
Lead Free
Lead Free
Length
18.92mm
Max Input Voltage (DC)
5.5V
Min Input Voltage (DC)
3V
Max Input Voltage
5.5V
Min Input Voltage
3V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Power
10.8W
Max Output Voltage
3.6V
Min Output Voltage
900mV
Max Power Dissipation
10.8W
Number of Outputs
1
Output Current
3A
Output Voltage
3.6V
Package Quantity
49
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PTH04000W
Voltage - Output 1
3.6V
Width
12.57mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments PTH04000WAZ Datasheet
Download the complete datasheet for Texas Instruments PTH04000WAZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

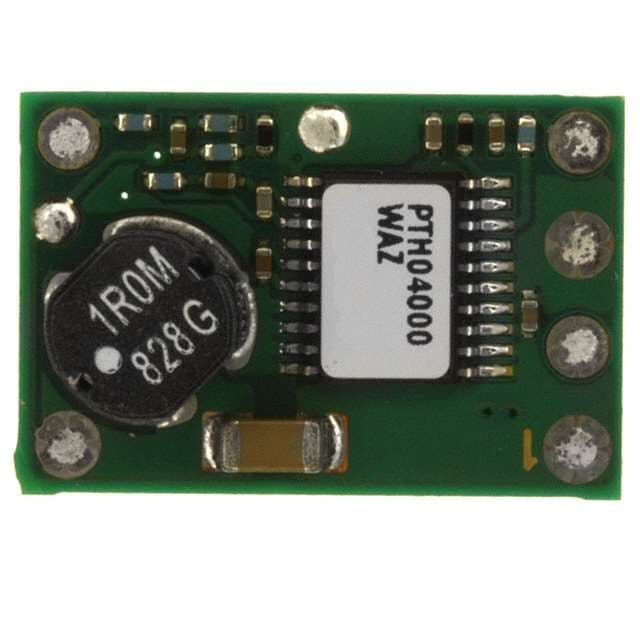

Product Images
