10A, 55W adjustable output DC/DC converter module with a 4.5V to 14V input range. Features 95% efficiency, non-isolated topology, and a wide output voltage adjustment from 690mV to 5.5V. Designed for board mounting with 11 through-hole connections, this module operates from -40°C to 85°C and boasts a UL94 V-0 flammability rating. Its compact dimensions (22.1mm L x 15.75mm D x 8.39mm H) and 5g weight make it suitable for space-constrained applications.
Power55W
Quick Jump:
Technical Specifications
Texas Instruments PTH08T241WAD technical specifications.
General
Current - Output 1
10A
Depth
15.75mm
Efficiency
95%
Flammability Rating
UL94 V-0
Height
0.34inch
Isolation
Non-Isolated
Lead Free
Lead Free
Length
22.1mm
Max Input Voltage (DC)
14V
Min Input Voltage (DC)
4.5V
Max Input Voltage
14V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
10A
Max Output Power
55W
Max Output Voltage
5.5V
Min Output Voltage
690mV
Max Power Dissipation
55W
Number of Outputs
1
Output Current
10A
Output Power
55W
Output Type
Adjustable
Output Voltage
5.5V
Package Quantity
49
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PTH08T241W
Thickness
8.39mm
Voltage - Output 1
5.5V
Weight
5g
Width
0.62inch
Compliance
RoHS
Compliant
Datasheet
Texas Instruments PTH08T241WAD Datasheet
Download the complete datasheet for Texas Instruments PTH08T241WAD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

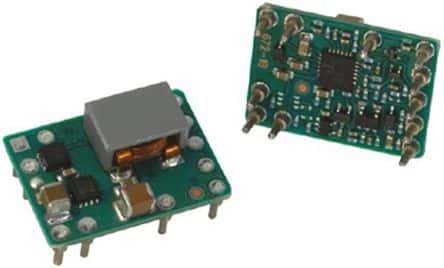

Product Images
