10-Amp, non-isolated DC/DC converter module with a 4.5V to 14V input range and 690mV to 5.5V adjustable output. Features 95% efficiency, UVLO, OCP, and OTP protection. This 11-surface mount module operates from -40°C to 85°C and is housed in an SMD/SMT package with a UL94 V-0 flammability rating.
PackageSMD/SMT
Quick Jump:
Technical Specifications
Texas Instruments PTH08T241WAS technical specifications.
General
Package/Case
SMD/SMT
Current - Output 1
10A
Depth
15.75mm
Efficiency
95%
Features
UVLO, OCP, OTP
Flammability Rating
UL94 V-0
Isolation
Non-Isolated
Lead Free
Contains Lead
Length
22.1mm
Max Input Voltage
14V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
10A
Max Output Voltage
5.5V
Min Output Voltage
690mV
Number of Outputs
1
Output Current
10A
Output Voltage
5.5V
Package Quantity
49
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
No
Series
PTH08T241W
Voltage - Output 1
5.5V
Weight
5g
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments PTH08T241WAS Datasheet
Download the complete datasheet for Texas Instruments PTH08T241WAS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

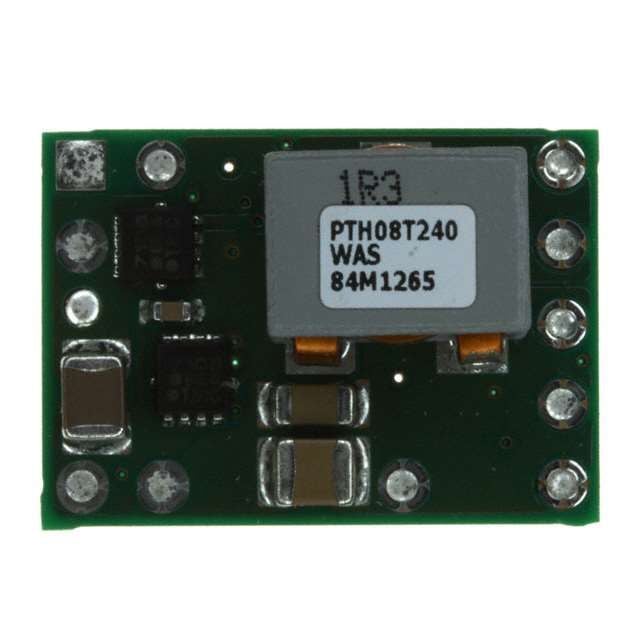

Product Images
