3-A, non-isolated DC/DC converter module with adjustable output voltage from 0.69V to 5.5V. Features a 4.5V to 14V input range, 95% efficiency, and TurboTrans technology. Integrated protection includes UVLO, OCP, and OTP. Housed in a 10-pin SMD/SMT package, this module operates from -40°C to 85°C and meets UL94 V-0 flammability standards.
PackageSMD/SMT
Quick Jump:
Technical Specifications
Texas Instruments PTH08T260WAZ technical specifications.
General
Package/Case
SMD/SMT
Current - Output 1
3A
Depth
15.75mm
Efficiency
95%
Features
UVLO, OCP, OTP
Flammability Rating
UL94 V-0
Height
0.36inch
Isolation
Non-Isolated
Lead Free
Lead Free
Length
18.92mm
Max Input Voltage (DC)
14V
Min Input Voltage (DC)
4.5V
Max Input Voltage
14V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Power
16.5W
Max Output Voltage
5.5V
Min Output Voltage
690mV
Max Power Dissipation
17W
Number of Outputs
1
Output Current
3A
Output Voltage
5.5V
Package Quantity
36
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PTH08T260W
Voltage - Output 1
5.5V
Weight
2.5g
Width
15.75mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments PTH08T260WAZ Datasheet
Download the complete datasheet for Texas Instruments PTH08T260WAZ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

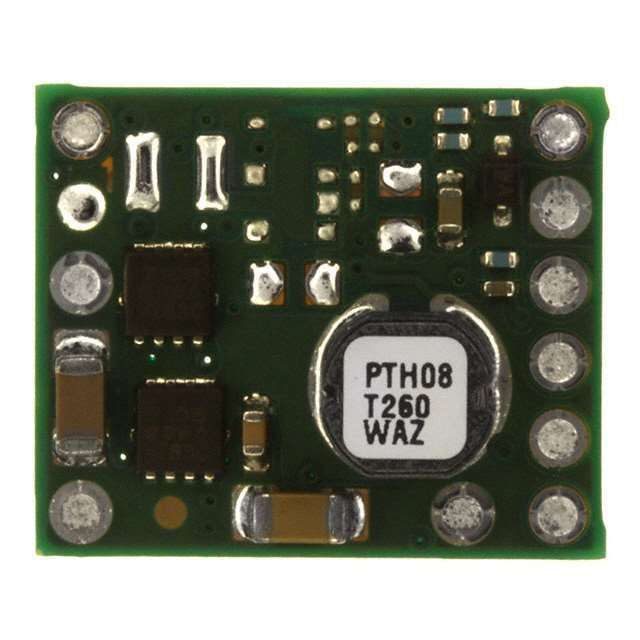

Product Images
