12V input, non-isolated DC/DC converter module with adjustable output voltage from 1.2V to 5.5V. Delivers up to 26A output current with a maximum output power of 143W. Features high efficiency up to 94.5% and includes UVLO, OCP, and OTP protection. Operates across a wide temperature range of -40°C to 85°C. Packaged in a 13-surface mount module, suitable for tape and reel packaging.
PackageSMD/SMT
Quick Jump:
Technical Specifications
Texas Instruments PTH12030WAST technical specifications.
General
Package/Case
SMD/SMT
Current - Output 1
26A
Depth
28.45mm
Efficiency
94.5%
Features
UVLO, OCP, OTP
Height
0.38inch
Isolation
Non-Isolated
Lead Free
Contains Lead
Length
34.8mm
Max Input Voltage
13.8V
Min Input Voltage
10.2V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
26A
Max Output Voltage
5.5V
Min Output Voltage
1.2V
Max Power Dissipation
143W
Number of Outputs
1
Output Current
26A
Output Voltage
5.5V
Package Quantity
200
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
No
Series
PTH12030
Voltage - Output 1
5.5V
Width
1.12inch
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments PTH12030WAST Datasheet
Download the complete datasheet for Texas Instruments PTH12030WAST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

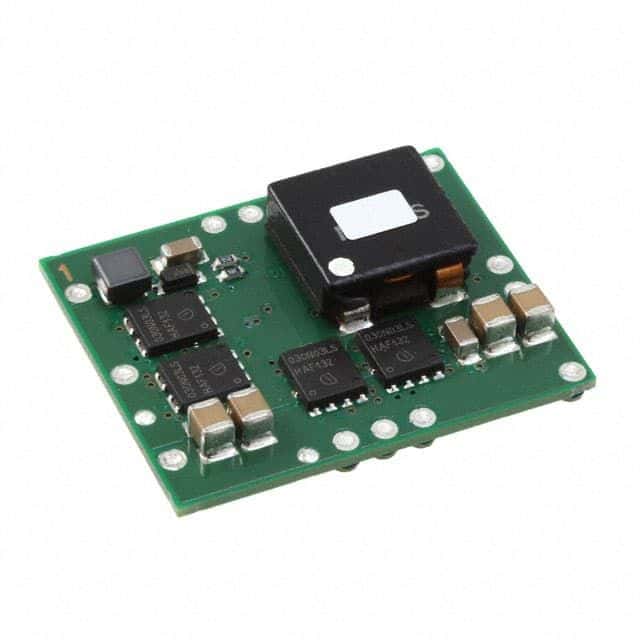

Product Images
