1.5A DC/DC controller and regulator module with a wide input voltage range of 15V to 36V and adjustable output voltage from 11.85V to 22V. This non-isolated, through-hole module delivers up to 22.5W of output power with 94% efficiency and features Under-Voltage Lockout (UVLO). Operating across a temperature range of -40°C to 85°C, it offers a compact footprint with dimensions of 18.92mm (L) x 12.57mm (W) x 0.34inch (H). RoHS compliant and lead-free.
PackageModule
Power22.5W
Quick Jump:
Technical Specifications
Texas Instruments PTN78000HAH technical specifications.
General
Package/Case
Module
Current - Output 1
1.5A
Depth
12.57mm
Efficiency
94%
Features
UVLO
Height
0.34inch
Isolation
Non-Isolated
Lead Free
Lead Free
Length
18.92mm
Max Input Voltage (DC)
36V
Min Input Voltage (DC)
15V
Max Input Voltage
36V
Min Input Voltage
15V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Output Power
22.5W
Max Output Voltage
22V
Min Output Voltage
11.85V
Max Power Dissipation
33W
Number of Outputs
1
Output Current
1.5A
Output Power
22.5W
Output Voltage
22V
Package Quantity
56
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PTN78000H
Voltage - Output 1
22V
Width
12.57mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments PTN78000HAH Datasheet
Download the complete datasheet for Texas Instruments PTN78000HAH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

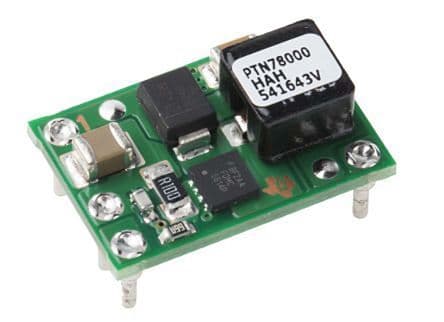

Product Images
