3-V series voltage reference IC, featuring a 3V fixed output voltage with 0.2% tolerance. This bandgap reference operates from a 3.001V to 5.5V input supply, drawing a maximum of 50µA quiescent current. It provides up to 25mA output current and is housed in a compact 3-pin SOT-23 package, measuring 2.92mm x 1.3mm x 1.22mm. Operating across a temperature range of -40°C to 125°C, this lead-free and RoHS-compliant component is supplied on tape and reel.
PackageSOT-23
Current42uA
Quick Jump:
Technical Specifications
Texas Instruments REF3030AIDBZR technical specifications.
General
Package/Case
SOT-23
Height
1.22mm
Lead Free
Lead Free
Length
2.92mm
Max Input Voltage
5.5V
Min Input Voltage
3.001V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
25mA
Max Output Voltage
3V
Min Output Voltage
3V
Max Supply Current
50uA
Number of Channels
1
Operating Supply Current
50uA
Output Current
25mA
Output Type
Fixed
Output Voltage
3V
Package Quantity
3000
Packaging
Tape and Reel
Quiescent Current
42uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Series
Reference Voltage
3V
RoHS Compliant
Yes
Supply Current
42uA
Thickness
1mm
Tolerance
0.2%
Width
1.3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments REF3030AIDBZR Datasheet
Download the complete datasheet for Texas Instruments REF3030AIDBZR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

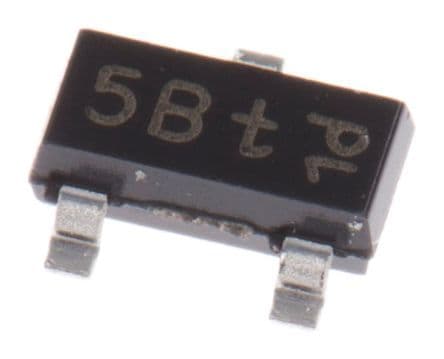

Product Images
