Texas Instruments
REF3133AIDBZT
3.3-V, 20-ppm/°C max, 100-µA, 3-pin SOT-23 series voltage reference 3-SOT-23 -40 to 125
PackageSOT-23-3
Quick Jump:
Technical Specifications
Texas Instruments REF3133AIDBZT technical specifications.
General
Package/Case
SOT-23-3
Lead Free
Lead Free
Max Input Voltage
5.5V
Min Input Voltage
3.35V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
10mA
Max Supply Current
100uA
Number of Channels
1
Operating Supply Current
100uA
Output Current
10mA
Output Voltage
3.3V
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
115uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Series
Reference Voltage
3.3V
RoHS Compliant
Yes
Tolerance
0.2%
Weight
0.050717oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments REF3133AIDBZT Datasheet
Download the complete datasheet for Texas Instruments REF3133AIDBZT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

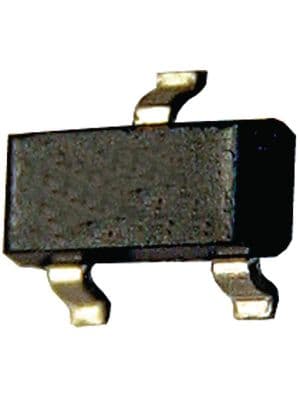

Product Images
