Precision voltage reference IC offering a stable 2.5V output with a low temperature drift of 30 ppm/°C. Features a low quiescent current of 3.9 µA and a maximum output current of 5 mA. Operates from a minimum input voltage of 2.7V up to a maximum of 5.5V, with a wide operating temperature range of -40°C to 125°C. Available in SOT-23 and SC70 packages, this lead-free, RoHS-compliant component is suitable for surface-mount applications.
PackageSOT-23
Quick Jump:
Technical Specifications
Texas Instruments REF3325AIDBZT technical specifications.
General
Package/Case
SOT-23
Lead Free
Lead Free
Max Input Voltage
5.5V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
5mA
Max Output Voltage
2.5V
Min Output Voltage
2.5V
Max Supply Voltage
5.5V
Number of Channels
1
Operating Supply Current
8.5uA
Output Current
5mA
Output Type
Fixed
Output Voltage
2.5V
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
3.9uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Series
Reference Voltage
2.5V
RoHS Compliant
Yes
Termination
SMD/SMT
Tolerance
0.15%
Weight
0.050717oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments REF3325AIDBZT Datasheet
Download the complete datasheet for Texas Instruments REF3325AIDBZT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

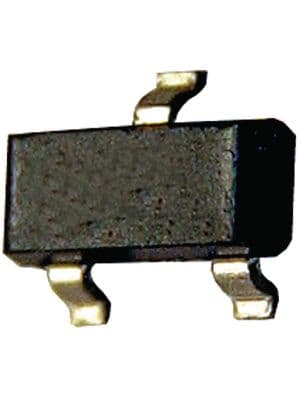

Product Images
