Precision 2.5V voltage reference IC, featuring a fixed series reference type with 0.1% tolerance. This component operates with a maximum input voltage of 18V and a minimum of 2.7V, delivering a stable 2.5V output voltage up to 10mA. Housed in an 8-pin SOIC package (D), it offers a wide operating temperature range from -40°C to 125°C and a low operating supply current of 800µA. The RoHS compliant device is supplied in a tube of 75 units.
PackageD
Quick Jump:
Technical Specifications
Texas Instruments REF5025AID technical specifications.
General
Package/Case
D
Height
1.5mm
Lead Free
Lead Free
Length
5mm
Max Input Voltage
18V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
10mA
Max Output Voltage
2.5V
Number of Channels
1
Operating Supply Current
800uA
Output Current
10mA
Output Voltage
2.5V
Package Quantity
75
Packaging
Rail/Tube
Quiescent Current
1mA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Series, Fixed
Reference Voltage
2.5V
RoHS Compliant
Yes
Thickness
1.58mm
Tolerance
0.1%
Weight
0.002677oz
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments REF5025AID Datasheet
Download the complete datasheet for Texas Instruments REF5025AID to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

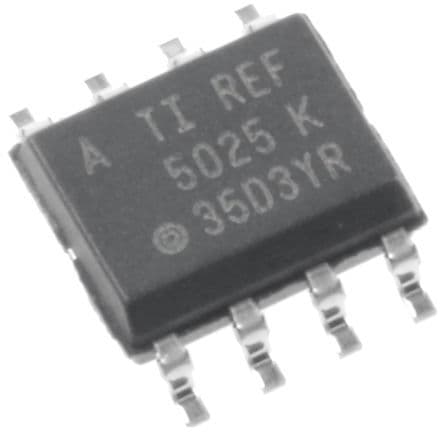

Product Images
