Precision series voltage reference, outputting a fixed 2.5V with 30ppm accuracy and 0.1% tolerance. Features low 3-µVpp/V noise and a stable 3-ppm/°C temperature drift. Operates from a 2.7V to 18V input, delivering up to 10mA output current. Housed in an 8-VSSOP package, this component is RoHS compliant and operates across a -40°C to 125°C temperature range.
PackageVSSOP
Quick Jump:
Technical Specifications
Texas Instruments REF5025AIDGKT technical specifications.
General
Accuracy
30ppm
Package/Case
VSSOP
Height
0.97mm
Lead Free
Lead Free
Length
3mm
Max Input Voltage
18V
Min Input Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
10mA
Max Output Voltage
2.5V
Number of Channels
1
Operating Supply Current
800uA
Output Current
10mA
Output Voltage
2.5V
Package Quantity
1
Packaging
Tape and Reel
Quiescent Current
1mA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Series, Fixed
Reference Voltage
2.5V
RoHS Compliant
Yes
Tolerance
0.1%
Weight
0.00067oz
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments REF5025AIDGKT Datasheet
Download the complete datasheet for Texas Instruments REF5025AIDGKT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

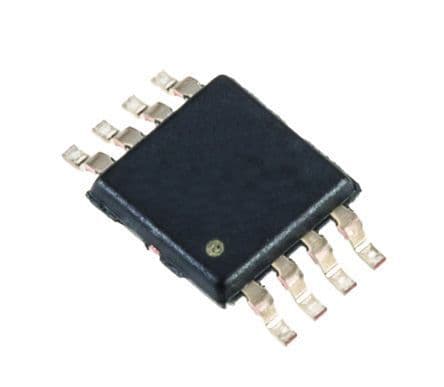

Product Images
