Precision series voltage reference IC, outputting a stable 5V with 0.05% tolerance. Features low noise at 3 µVpp/V and exceptional temperature stability with 3 ppm/°C drift. Operates from a 5.2V to 18V input, delivering up to 10mA output current. Housed in an 8-SOIC package, this RoHS compliant component functions across a -40°C to 125°C temperature range.
PackageD
Quick Jump:
Technical Specifications
Texas Instruments REF5050ID technical specifications.
General
Package/Case
D
Lead Free
Lead Free
Max Input Voltage
18V
Min Input Voltage
5.2V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
10mA
Max Output Voltage
5V
Number of Channels
1
Operating Supply Current
800uA
Output Current
10mA
Output Voltage
5V
Package Quantity
75
Packaging
Rail/Tube
Quiescent Current
1mA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Series
Reference Voltage
5V
RoHS Compliant
Yes
Tolerance
0.05%
Weight
0.002677oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments REF5050ID Datasheet
Download the complete datasheet for Texas Instruments REF5050ID to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

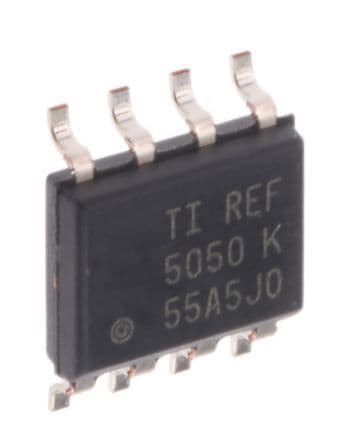

Product Images
