Positive fixed output linear voltage regulator, 2.5V, 500mA output current. Features a low dropout voltage of 115mV and a maximum input voltage of 15V. Offers 2% accuracy and includes power good and enable functions. Packaged in a TO-263-6 surface-mount case, operating from -40°C to 85°C.
PackageTO-263-6
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments REG103FA-2.5KTTT technical specifications.
General
Accuracy
2%
Package/Case
TO-263-6
Dropout Voltage
115mV
Height
4.58mm
Input Bias Current
500uA
Lead Free
Lead Free
Length
10.16mm
Min Current Limit
550mA
Max Input Voltage
15V
Min Input Voltage
2.1V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Max Output Voltage
3V
Min Output Voltage
2.5V
Number of Outputs
1
Number of Regulators
1
Output Current
500mA
Output Type
Fixed
Output Voltage
2.5V
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
500uA
Radiation Hardening
No
Reference Voltage
1.295V
RoHS Compliant
Yes
Width
8.42mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments REG103FA-2.5KTTT Datasheet
Download the complete datasheet for Texas Instruments REG103FA-2.5KTTT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

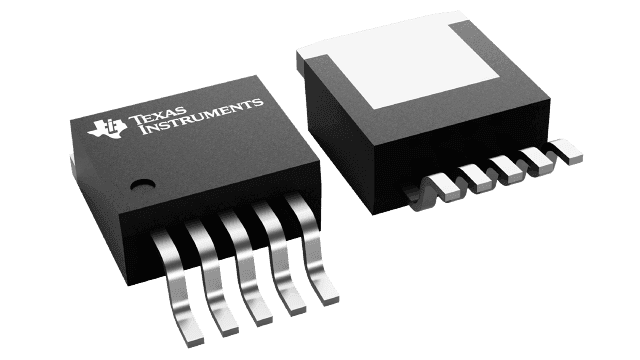

Product Images
