2.7V fixed positive LDO regulator, offering 500mA output current with 2% accuracy. Features a low 115mV dropout voltage and a maximum input voltage of 15V. This surface mount component is housed in a SOT-223-6 package, operating from -55°C to 125°C. Includes a 1.295V reference voltage and a minimum current limit of 550mA.
PackageSOT-223-6
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments REG103GA-2.7 technical specifications.
General
Accuracy
2%
Package/Case
SOT-223-6
Dropout Voltage
115mV
Input Bias Current
500uA
Lead Free
Contains Lead
Min Current Limit
550mA
Max Input Voltage
15V
Min Input Voltage
2.1V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Output Current
500mA
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Current
500mA
Output Type
Fixed
Output Voltage
2.7V
Output Voltage Accuracy
2%
Package Quantity
78
Packaging
Rail/Tube
Polarity
Positive
Radiation Hardening
No
Reference Voltage
1.295V
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments REG103GA-2.7 Datasheet
Download the complete datasheet for Texas Instruments REG103GA-2.7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

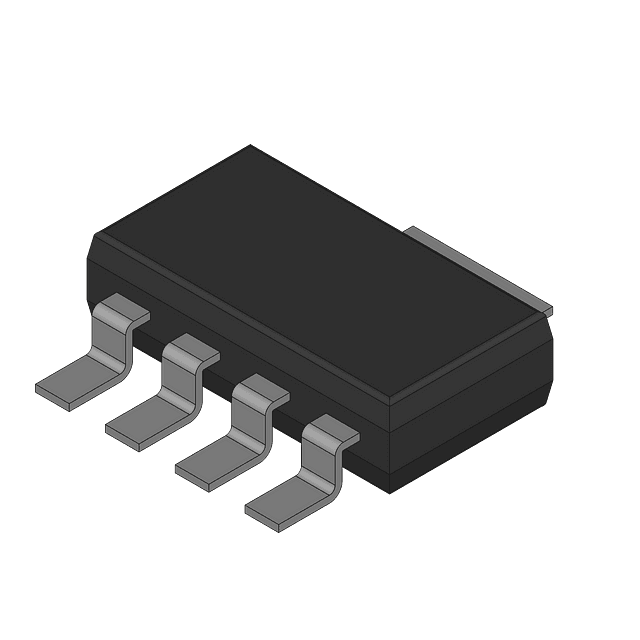

Product Images
