500mA, 3.3V fixed output positive linear voltage regulator with 2% accuracy. Features a low dropout voltage of 115mV and a maximum input voltage of 15V. Operates within a temperature range of -40°C to 85°C and is housed in a 6-SOT-223 package. Includes power good and enable functions, with a minimum current limit of 550mA.
PackageSOT-223
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments REG103GA-3.3 technical specifications.
General
Accuracy
2%
Package/Case
SOT-223
Dropout Voltage
115mV
Height
1.6mm
Input Bias Current
500uA
Lead Free
Lead Free
Length
6.5mm
Min Current Limit
550mA
Max Input Voltage
15V
Min Input Voltage
2.1V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Max Output Voltage
3.3V
Min Output Voltage
3.3V
Nominal Output Voltage
3.3V
Number of Outputs
1
Number of Regulators
1
Output Current
500mA
Output Type
Fixed
Output Voltage
3.3V
Output Voltage Accuracy
2%
Package Quantity
78
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
500uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Voltage
1.295V
RoHS Compliant
Yes
Width
3.5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments REG103GA-3.3 Datasheet
Download the complete datasheet for Texas Instruments REG103GA-3.3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

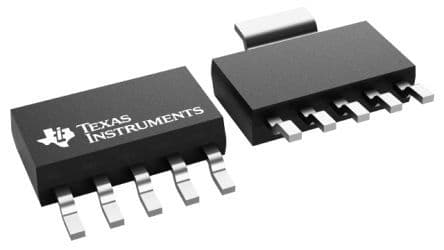

Product Images
