Texas Instruments
REG103GA-A/2K5
500-mA, 15-V, low-dropout voltage regulator with power good & enable 6-SOT-223 -40 to 85
PackageSOT-6
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments REG103GA-A/2K5 technical specifications.
General
Accuracy
2%
Package/Case
SOT-6
Dropout Voltage
115mV
Input Bias Current
500uA
Lead Free
Lead Free
Max Input Voltage
15V
Min Input Voltage
2.1V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Mount
Surface Mount
Number of Outputs
1
Output Current
500mA
Output Type
Adjustable
Output Voltage
5.5V
Package Quantity
2500
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
1mA
Radiation Hardening
No
Reference Voltage
1.295V
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments REG103GA-A/2K5 Datasheet
Download the complete datasheet for Texas Instruments REG103GA-A/2K5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

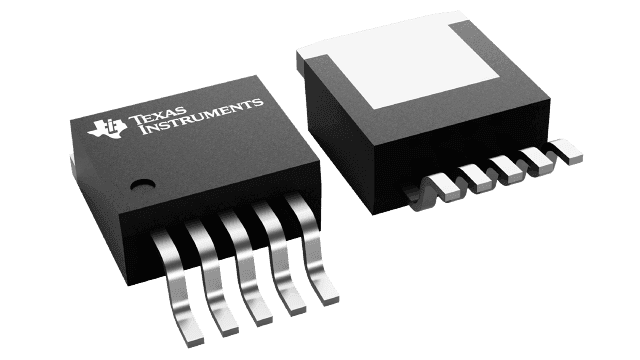

Product Images
