500mA, positive, fixed 2.5V output linear voltage regulator with a 115mV dropout voltage. Features a 2% accuracy, 15V maximum input voltage, and a 550mA minimum current limit. Operates across a -40°C to 85°C temperature range, includes power good and enable functions, and is RoHS compliant. Packaged in an 8-SOIC (D) case.
PackageD
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments REG103UA-2.5 technical specifications.
General
Accuracy
2%
Package/Case
D
Dropout Voltage
115mV
Input Bias Current
500uA
Lead Free
Lead Free
Min Current Limit
550mA
Max Input Voltage
15V
Min Input Voltage
2.1V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Max Output Voltage
3V
Min Output Voltage
2.5V
Number of Outputs
1
Number of Regulators
1
Output Current
500mA
Output Type
Fixed
Output Voltage
2.5V
Package Quantity
75
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
500uA
Radiation Hardening
No
Reference Voltage
1.295V
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments REG103UA-2.5 Datasheet
Download the complete datasheet for Texas Instruments REG103UA-2.5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

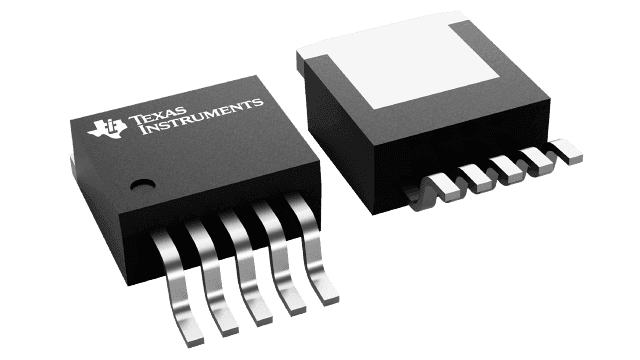

Product Images
