800-mA, 3.3V fixed output linear voltage regulator, SOT-223 package. Features 1% output voltage accuracy, 1.1V dropout voltage, and a maximum input voltage of 15V. Operates from 3.8V to 15V input, providing a stable 3.3V output with up to 800mA current. Extended operating temperature range from 0°C to 125°C. RoHS compliant and lead-free.
PackageSOT-223
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments REG1117-3.3 technical specifications.
General
Accuracy
1%
Package/Case
SOT-223
Dropout Voltage
1.1V
Height
1.6mm
Input Bias Current
4mA
Lead Free
Lead Free
Length
6.5mm
Min Current Limit
800mA
Max Input Voltage
15V
Min Input Voltage
3.8V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
800mA
Max Output Voltage
3.3V
Min Output Voltage
3.3V
Nominal Output Voltage
3.3V
Number of Outputs
1
Number of Regulators
1
Output Current
800mA
Output Type
Fixed
Output Voltage
3.3V
Output Voltage Accuracy
1%
Package Quantity
80
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
4mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
3.5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments REG1117-3.3 Datasheet
Download the complete datasheet for Texas Instruments REG1117-3.3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

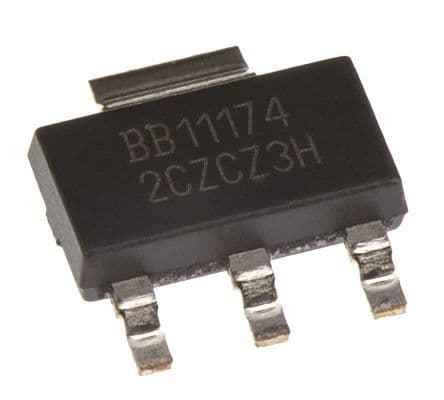

Product Images
