1-A, positive, fixed output linear voltage regulator with a nominal output voltage of 1.8V. Features a 1% accuracy and a maximum output current of 1A. Operates with a maximum input voltage of 15V and a dropout voltage of 1.2V. Housed in a SOT-223 package, this RoHS compliant component is suitable for operation across a temperature range of -40°C to +125°C.
PackageSOT-223
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments REG1117A-1.8 technical specifications.
General
Accuracy
1%
Package/Case
SOT-223
Dropout Voltage
1.2V
Height
1.6mm
Input Bias Current
4mA
Lead Free
Lead Free
Length
6.5mm
Min Current Limit
1A
Max Input Voltage
15V
Min Input Voltage
3.8V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
1A
Max Output Voltage
1.8V
Min Output Voltage
1.8V
Nominal Output Voltage
1.8V
Number of Outputs
1
Number of Regulators
1
Output Current
1A
Output Type
Fixed
Output Voltage
1.8V
Package Quantity
80
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
4mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Thickness
1.6mm
Width
3.5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments REG1117A-1.8 Datasheet
Download the complete datasheet for Texas Instruments REG1117A-1.8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

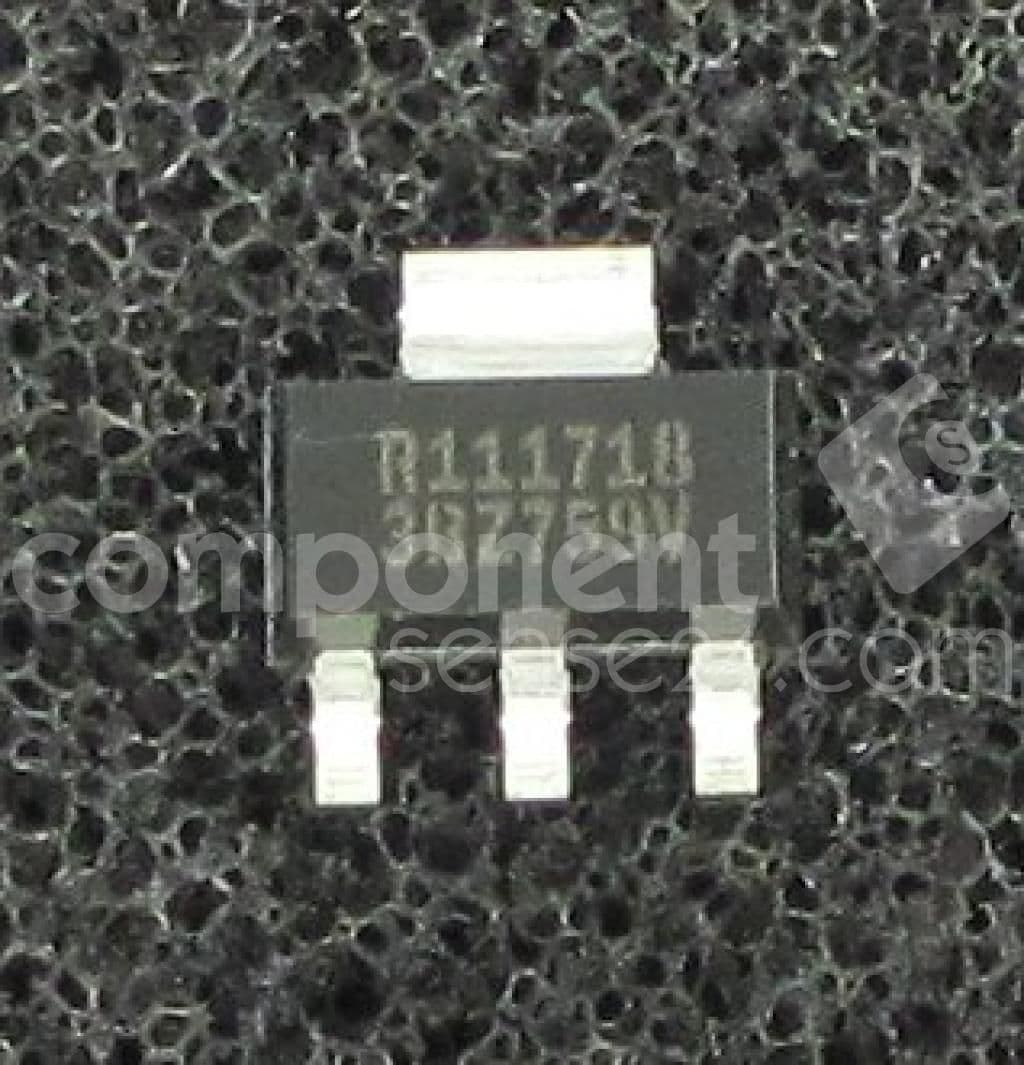

Product Images
